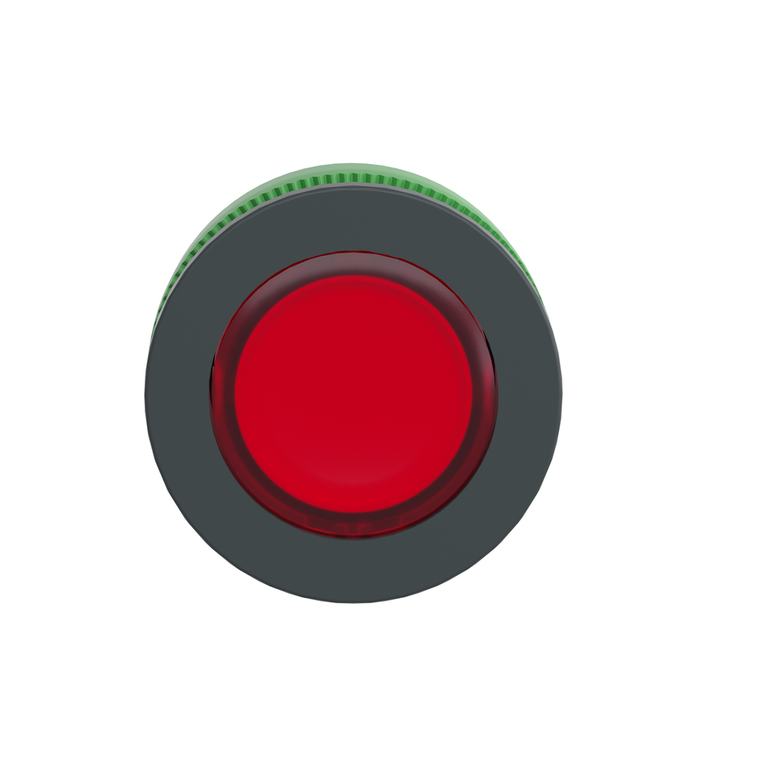

Schneider Electric ZB5FA48 Flush Mounted Red Flush Caps Pushbutton
Schneider Electric
$16.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Mercury Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB5
- Operator Additional Information:
- for insertion of legend
- Environmental Disclosure:
- ENVPEP1710010EN
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Rohs Exemption Information:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Overvoltage Category:
- class II IEC 60536
- Bezel Material:
- dark grey plastic
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ik Degree Of Protection:
- IK03 EN 50102
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Protective Treatment:
- TC
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cap/Operator Or Lens Colour:
- red
- Main Group:
- illum push-button
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 30.5 mm
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Cad Overall Height:
- 37 mm
- Product Or Component Type:
- head for illuminated push-button
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- Cad Overall Width:
- 37 mm
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Marking:
- unmarked
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 10000000 cycles
- Product Compatibility:
- universal LED
- Net Weight:
- 0.017 kg
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator:
- spring return
- Cad Overall Depth:
- 30 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- GL || DNV || LROS (Lloyds register of shipping) || BV || UL Listed || CSA
- Head Type:
- built-in-flush
- Group Of Product:
- flush push with inser of legend
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Operator Profile:
- red flush, unmarked
