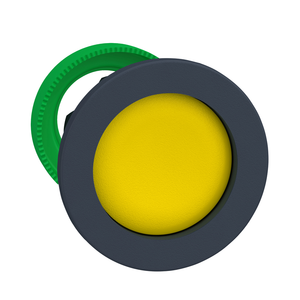

Schneider Electric ZB5FA9 Flush Mounted Pushbutton Head With Set O
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Operator Profile:
- 6 colors choice flush, unmarked
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for non-illuminated push-button
- Shape Of Signaling Unit Head:
- round
- Bezel Material:
- dark grey plastic
- Cad Overall Depth:
- 30 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Head Type:
- built-in-flush
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Device Short Name:
- ZB5
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Cad Overall Width:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Sustainable Offer Status:
- Green Premium product
- Operator Additional Information:
- with set of 6 color cap
- Protective Treatment:
- TH
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || DNV || GL || UL Listed || CSA
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Environmental Disclosure:
- ENVPEP1710010EN
- Net Weight:
- 0.03 kg
- Ik Degree Of Protection:
- IK03 IEC 50102
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 10000000 cycles
- Type Of Operator:
- spring return
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Cad Overall Height:
- 37 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
