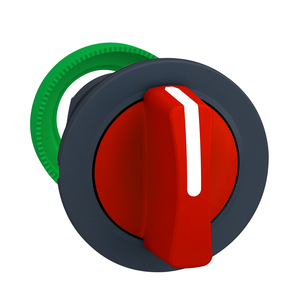

Schneider Electric ZB5FD204 Flush Mounted Red Selector Switch Head 2

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FD204 Flush Mounted Red Selector Switch Head 2

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FD204

UPC:

3606481339201

MPN:

Condition:

New

Mechanical Durability:

1000000 cycles

Mounting Diameter:

30.5 mm

Operator Profile:

red standard handle

Mercury Free:

Yes

Product Certifications:

LROS (Lloyds register of shipping) || DNV || CSA || GL || BV || UL Listed

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Head Type:

built-in-flush

Protective Treatment:

TH

Ambient Air Temperature For Storage:

-40-70 °C

Sale Per Indivisible Quantity:

1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Shape Of Signaling Unit Head:

round

Sustainable Offer Status:

Green Premium product

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XB5

Net Weight:

0.031 kg

Type Of Operator:

stay put

Device Short Name:

ZB5

Environmental Disclosure:

ENVPEP1710010EN

Cad Overall Width:

37 mm

Product Or Component Type:

head for selector switch

Cad Overall Depth:

46 mm

Operator Position Information:

2 positions 90°

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Standards:

EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-1

Ambient Air Temperature For Operation:

-40-70 °C

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Toxic Heavy Metal Free:

Yes

Cad Overall Height:

37 mm

Circularity Profile:

ENVEOLI1710010EN

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Bezel Material:

dark grey plastic

Ik Degree Of Protection:

IK03 IEC 50102

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1

Datasheet:

View
