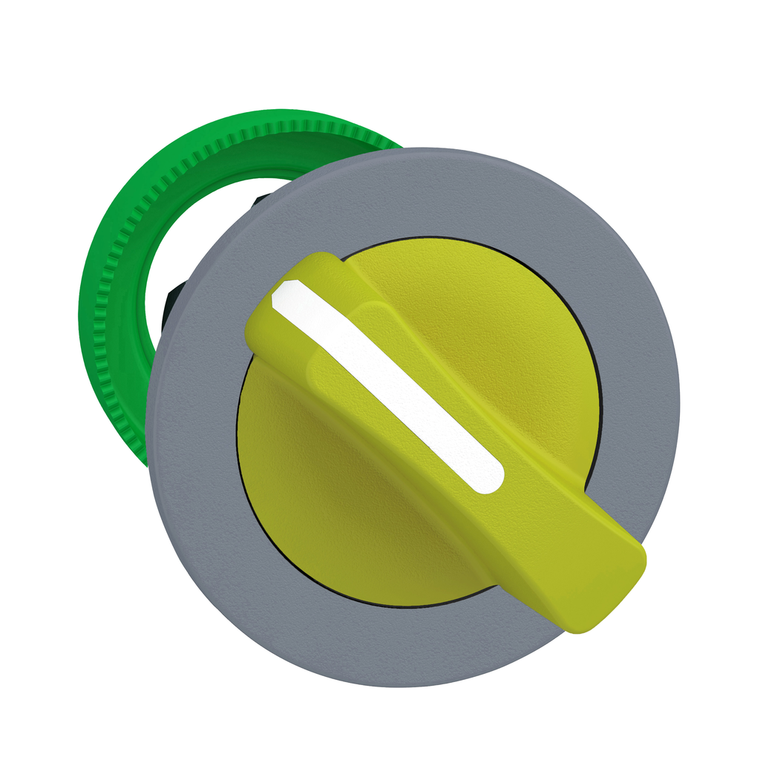

Schneider Electric ZB5FD205C0 Flsmntd Yellow Sel Sw Head 2Pos Stay Put

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FD205C0 Flsmntd Yellow Sel Sw Head 2Pos Stay Put

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FD205C0

UPC:

3606489771447

MPN:

Condition:

New

Cad Overall Depth:

46 mm

Bezel Material:

plastic colour plated grey

Mounting Diameter:

30.5 mm

Ambient Air Temperature For Operation:

-40-70 °C

Product Certifications:

LROS (Lloyds register of shipping) || DNV || CSA || BV || UL Listed || GL

Mechanical Durability:

1000000 cycles

China Rohs Regulation:

X

Head Type:

built-in-flush

Operator Profile:

yellow standard handle

Cad Overall Height:

37 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Or Component Type:

head for selector switch

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Sale Per Indivisible Quantity:

1

Overvoltage Category:

class II IEC 60536

Toxic Heavy Metal Free:

Yes

Electrical Composition Code:

C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mercury Free:

Yes

Shape Of Signaling Unit Head:

round

Protective Treatment:

TH

Type Of Operator:

stay put

Reach Free Of Svhc:

Yes

Rohs Exemption Information:

Yes

Device Short Name:

ZB5

Range Of Product:

Harmony XB5

Net Weight:

0.031 kg

Device Presentation:

basic element

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Ambient Air Temperature For Storage:

-40-70 °C

Ik Degree Of Protection:

IK03 IEC 50102

Cad Overall Width:

37 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1

Operator Position Information:

2 positions 90°
