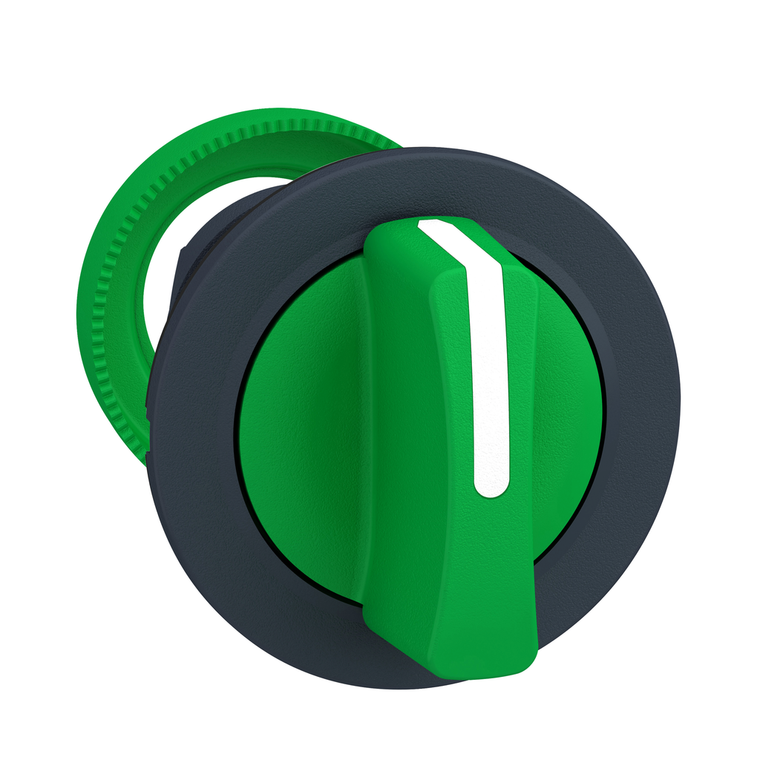

Schneider Electric ZB5FD303 Flush Mounted Green Selector Switch Head
Schneider Electric
$24.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FD303 Flush Mounted Green Selector Switch Head
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Mounting Diameter:
- 30.5 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Free Of Svhc:
- Yes
- Protective Treatment:
- TH
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Short Name:
- ZB5
- Product Or Component Type:
- head for selector switch
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.031 kg
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Operator Position Information:
- 3 positions +/- 45°
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Standards:
- UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
- Head Type:
- built-in-flush
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Certifications:
- GL || DNV || CSA || BV || LROS (Lloyds register of shipping) || UL Listed
- Range Of Product:
- Harmony XB5
- Mercury Free:
- Yes
- Type Of Operator:
- stay put
- Cad Overall Depth:
- 46 mm
- Cad Overall Height:
- 37 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- dark grey plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- green standard handle
- Datasheet:
- View
