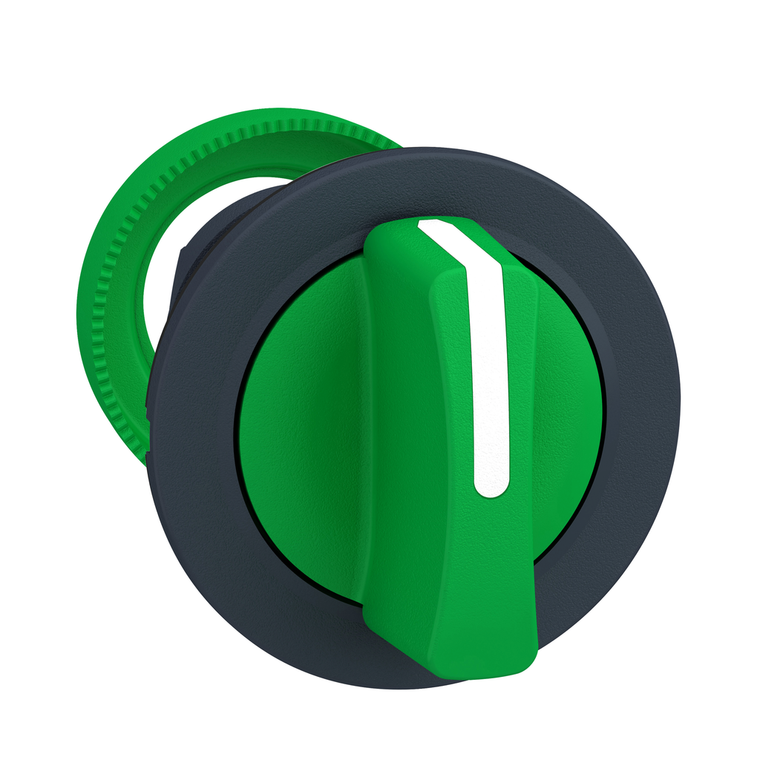

Schneider Electric ZB5FD503 Flush Mounted Green Selector Switch Head
Schneider Electric
$29.70
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Cad Overall Depth:
- 46 mm
- Bezel Material:
- dark grey plastic
- Operator Profile:
- green standard handle
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Certifications:
- UL Listed || CSA || LROS (Lloyds register of shipping) || GL || DNV || BV
- Protective Treatment:
- TH
- Range Of Product:
- Harmony XB5
- Mechanical Durability:
- 1000000 cycles
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Environmental Disclosure:
- ENVPEP1710010EN
- Shape Of Signaling Unit Head:
- round
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.031 kg
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 60536
- Toxic Heavy Metal Free:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1
- Cad Overall Width:
- 37 mm
- Cad Overall Height:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Type Of Operator:
- to centre spring return
- Head Type:
- built-in-flush
- Device Short Name:
- ZB5
- Operator Position Information:
- 3 positions +/- 45°
- Ambient Air Temperature For Operation:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Circularity Profile:
- ENVEOLI1710010EN
- Sustainable Offer Status:
- Green Premium product
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- head for selector switch
- Rohs Exemption Information:
- Yes
- Datasheet:
- View
