Schneider Electric ZB5FD703C0 Flmnt Green Selsw Head 3Pos Ret Lt-Cent
Schneider Electric
$24.55
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FD703C0 Flmnt Green Selsw Head 3Pos Ret Lt-Cent

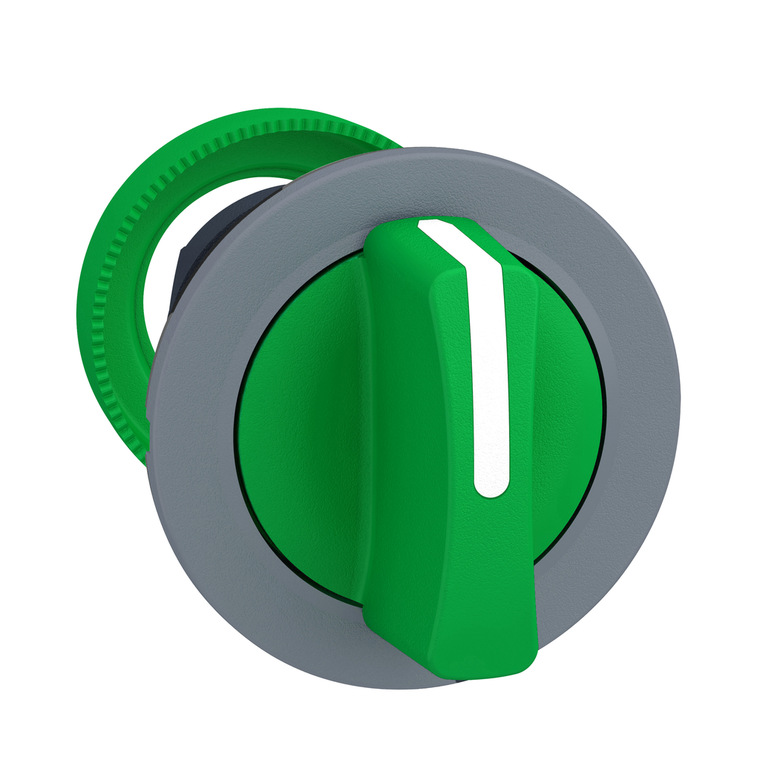

This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Position Information:
- 3 positions +/- 45°
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Operator Profile:
- green standard handle
- Device Presentation:
- basic element
- Cad Overall Height:
- 37 mm
- Bezel Material:
- plastic colour plated grey
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- Mounting Diameter:
- 30.5 mm
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Range Of Product:
- Harmony XB5
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || JIS C8201-1
- Reach Free Of Svhc:
- Yes
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 46 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Certifications:
- GL || UL Listed || CSA || LROS (Lloyds register of shipping) || BV || DNV
- Mercury Free:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- China Rohs Regulation:
- X
- Head Type:
- built-in-flush
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for selector switch
- Protective Treatment:
- TH
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.031 kg
- Type Of Operator:
- left to centre spring return
- Device Short Name:
- ZB5
- Datasheet:
- View
