Schneider Electric ZB5FD806C0 Flmnt Blue Selsw Head 3Pos Ret Rt-Cent
Schneider Electric
$28.62
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

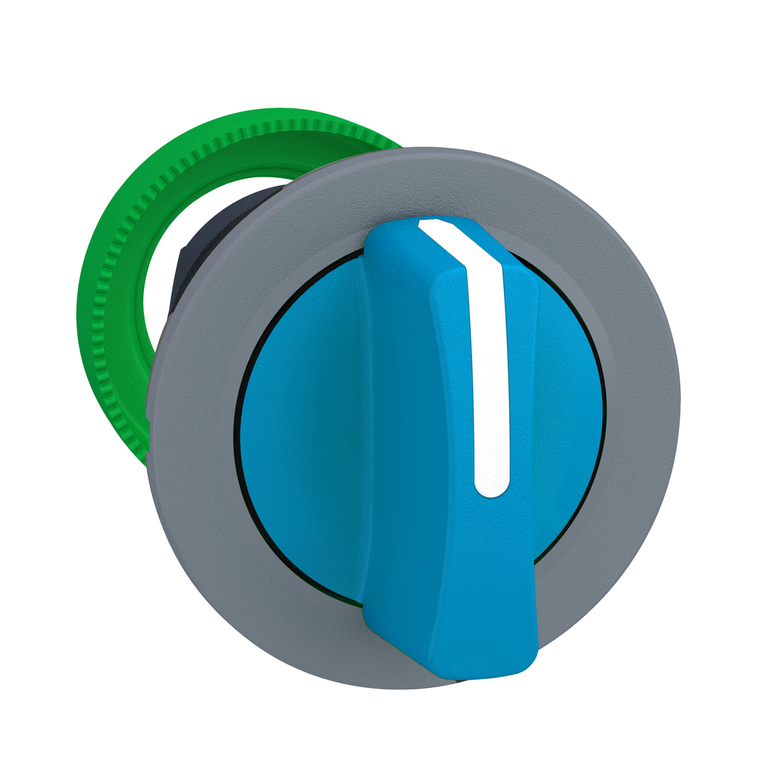

Schneider Electric ZB5FD806C0 Flmnt Blue Selsw Head 3Pos Ret Rt-Cent
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
- Mounting Diameter:
- 30.5 mm
- Head Type:
- built-in-flush
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for selector switch
- Cad Overall Height:
- 37 mm
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Operator Position Information:
- 3 positions +/- 45°
- Cad Overall Width:
- 37 mm
- Bezel Material:
- plastic colour plated grey
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || JIS C8201-1
- Type Of Operator:
- right to centre spring return
- Ik Degree Of Protection:
- IK03 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 46 mm
- Range Of Product:
- Harmony XB5
- Operator Profile:
- blue standard handle
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Mechanical Durability:
- 1000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Toxic Heavy Metal Free:
- Yes
- Product Certifications:
- CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL
- Device Short Name:
- ZB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Sale Per Indivisible Quantity:
- 1
- Net Weight:
- 0.031 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Datasheet:
- View
