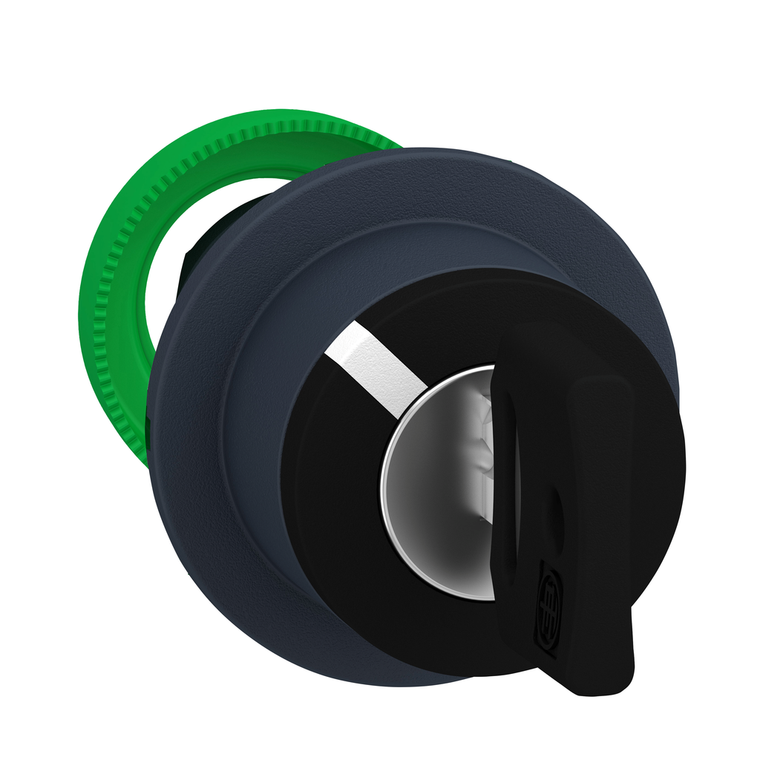

Schneider Electric ZB5FG02D Flush Mounted Selector Switch Head Key 3
Schneider Electric
$90.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FG02D Flush Mounted Selector Switch Head Key 3
This 30mm key selector switch head, dom 8d1 and Ronis 3131a provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Cad Overall Width:
- 37 mm
- Key Withdrawal Position:
- right
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 72 mm
- Protective Treatment:
- TH
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Device Short Name:
- ZB5
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Head Type:
- built-in-flush
- Sale Per Indivisible Quantity:
- 1
- Environmental Disclosure:
- ENVPEP1710010EN
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Offer Status:
- Green Premium product
- Shape Of Signaling Unit Head:
- round
- Operator Position Information:
- 2 positions 90°
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for key selector switch
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || CSA || DNV || GL || UL Listed
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK03 IEC 50102
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Height:
- 37 mm
- China Rohs Regulation:
- X
- Overvoltage Category:
- class II IEC 60536
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Keylock:
- Dom 8D1 || key 3131A
- Bezel Material:
- dark grey plastic
- Rohs Exemption Information:
- Yes
- Operator Profile:
- black key switch
- Type Of Operator:
- stay put
- Net Weight:
- 0.069 kg
- Mercury Free:
- Yes
- Datasheet:
- View
