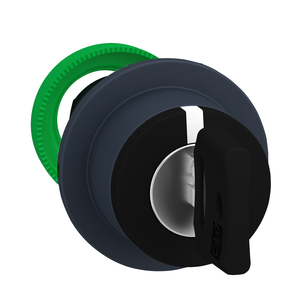

Schneider Electric ZB5FG04D Flush Mounted Selector Switch Head Key 8
This 30mm key selector switch head, dom 8d1 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Operator Profile:
- black key switch
- Cad Overall Height:
- 37 mm
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Circularity Profile:
- ENVEOLI1710010EN
- Type Of Keylock:
- Dom 8D1
- Environmental Disclosure:
- ENVPEP1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 0.069 kg
- Operator Position Information:
- 3 positions +/- 45°
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB5
- Mechanical Durability:
- 1000000 cycles
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || DNV || GL || BV || UL Listed
- Bezel Material:
- dark grey plastic
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Overvoltage Category:
- class II IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -40-70 °C
- Protective Treatment:
- TH
- Cad Overall Depth:
- 72 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- built-in-flush
- Standards:
- UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Device Short Name:
- ZB5
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Or Component Type:
- head for key selector switch
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Width:
- 37 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Key Withdrawal Position:
- right and center
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Type Of Operator:
- stay put
- Mounting Diameter:
- 30.5 mm
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Datasheet:
- View
