Schneider Electric ZB5FG06D Flush Mounted Selector Switch Head Key 8
Schneider Electric
$116.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm key selector switch head, dom 8d1 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Net Weight:
- 0.069 kg
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Product Certifications:
- BV || LROS (Lloyds register of shipping) || GL || UL Listed || DNV || CSA
- Ik Degree Of Protection:
- IK03 IEC 50102
- Sustainable Offer Status:
- Green Premium product
- Overvoltage Category:
- class II IEC 60536
- China Rohs Regulation:
- X
- Cad Overall Width:
- 37 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Environmental Disclosure:
- ENVPEP1710010EN
- Type Of Keylock:
- Dom 8D1
- Cad Overall Depth:
- 72 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Head Type:
- built-in-flush
- Protective Treatment:
- TH
- Key Withdrawal Position:
- center
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Circularity Profile:
- ENVEOLI1710010EN
- Type Of Operator:
- left to centre spring return
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Product Or Component Type:
- head for key selector switch
- Standards:
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Mounting Diameter:
- 30.5 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- black key switch
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Height:
- 37 mm
- Bezel Material:
- dark grey plastic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Position Information:
- 3 positions +/- 45°
- Datasheet:
- View
Related Products
-
-

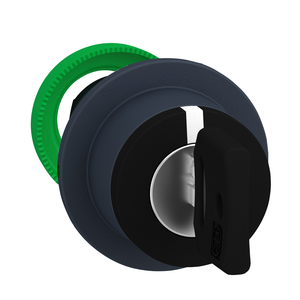

Schneider Electric ZB5FG03D Flush Mounted Selector Switch Head Key 8
