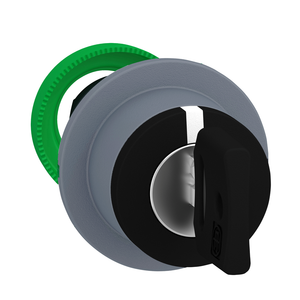

Schneider Electric ZB5FG08C0 Flush Mounted Selector Switch Head Key
Schneider Electric
$68.05
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm key selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete key selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- head for key selector switch
- Key Withdrawal Position:
- left
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.069 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Cad Overall Height:
- 37 mm
- Bezel Material:
- plastic colour plated grey
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mechanical Durability:
- 1000000 cycles
- Operator Position Information:
- 3 positions +/- 45°
- Head Type:
- built-in-flush
- Mounting Diameter:
- 30.5 mm
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Product Certifications:
- UL Listed || DNV || GL || CSA || LROS (Lloyds register of shipping) || BV
- Standards:
- UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Device Short Name:
- ZB5
- Cad Overall Depth:
- 72 mm
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Profile:
- black key switch
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB5
- Type Of Operator:
- right to centre spring return
- Ik Degree Of Protection:
- IK03 IEC 50102
- Type Of Keylock:
- key 455
- Datasheet:
- View
