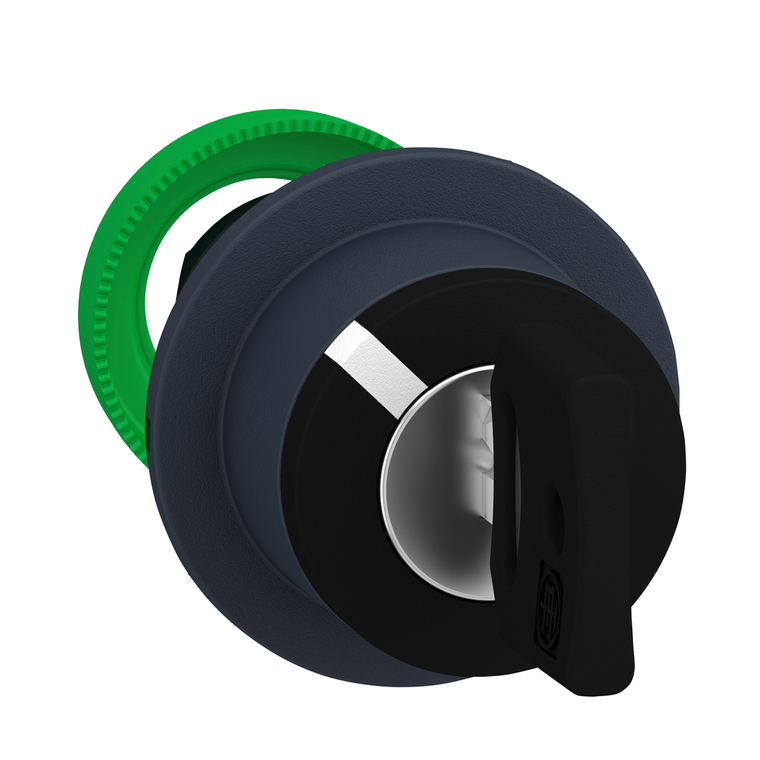

Schneider Electric ZB5FG2 Flush Mounted Selector Switch Head Key 4

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5FG2 Flush Mounted Selector Switch Head Key 4

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FG2

UPC:

3.60648E+12

MPN:

Condition:

New

Ik Degree Of Protection:

IK03 IEC 50102

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-70 °C

Shape Of Signaling Unit Head:

round

Cad Overall Depth:

72 mm

Type Of Keylock:

key 455

Environmental Disclosure:

ENVPEP1710010EN

Overvoltage Category:

class II IEC 60536

Mounting Diameter:

30.5 mm

China Rohs Regulation:

X

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Standards:

IEC 60947-5-4 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operator Profile:

black key switch

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Head Type:

built-in-flush

Device Short Name:

ZB5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Circularity Profile:

ENVEOLI1710010EN

Key Withdrawal Position:

left

Mercury Free:

Yes

Operator Position Information:

2 positions 90°

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Device Presentation:

basic element

Product Or Component Type:

head for key selector switch

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Net Weight:

0.069 kg

Product Certifications:

GL || LROS (Lloyds register of shipping) || UL Listed || CSA || DNV || BV

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Sustainable Offer Status:

Green Premium product

Type Of Operator:

stay put

Bezel Material:

dark grey plastic

Range Of Product:

Harmony XB5 || Harmony XALF

Mechanical Durability:

1000000 cycles

Cad Overall Width:

37 mm

Cad Overall Height:

37 mm

Protective Treatment:

TH

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6
