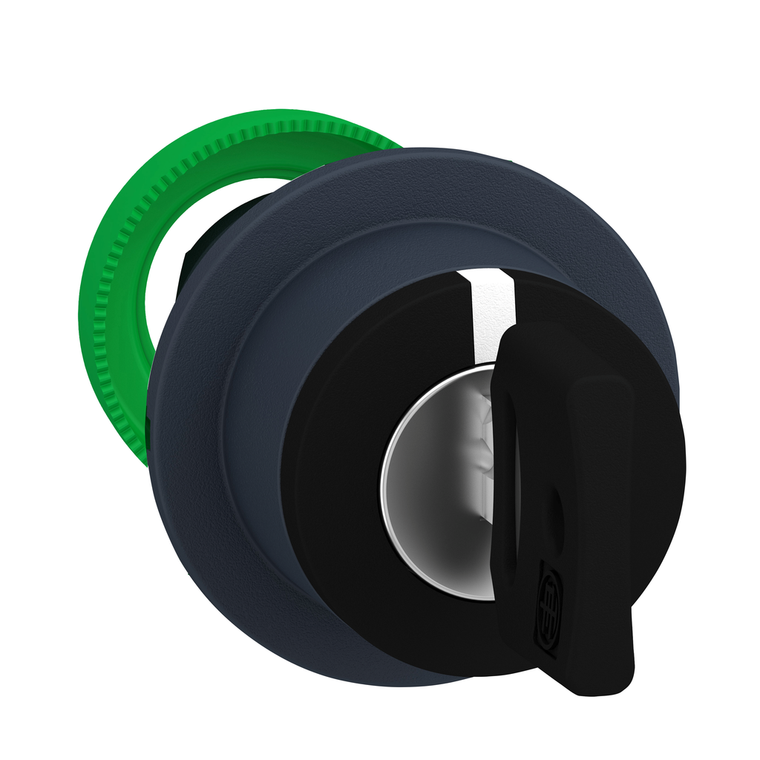

Schneider Electric ZB5FG3D Flush Mounted Selector Switch Head Key 3
Schneider Electric
$90.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30mm key selector switch head, dom 8d1 and Ronis 3131a provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Environmental Disclosure:
- ENVPEP1710010EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- China Rohs Regulation:
- X
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Device Short Name:
- ZB5
- Mechanical Durability:
- 1000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Height:
- 37 mm
- Sustainable Offer Status:
- Green Premium product
- Circularity Profile:
- ENVEOLI1710010EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Position Information:
- 3 positions +/- 45°
- Sale Per Indivisible Quantity:
- 1
- Ik Degree Of Protection:
- IK03 IEC 50102
- Cad Overall Depth:
- 72 mm
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Product Or Component Type:
- head for key selector switch
- Standards:
- IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-1
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Certifications:
- DNV || CSA || UL Listed || LROS (Lloyds register of shipping) || GL || BV
- Net Weight:
- 0.069 kg
- Shape Of Signaling Unit Head:
- round
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Type Of Operator:
- stay put
- Cad Overall Width:
- 37 mm
- Mercury Free:
- Yes
- Operator Profile:
- black key switch
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Diameter:
- 30.5 mm
- Head Type:
- built-in-flush
- Bezel Material:
- dark grey plastic
- Key Withdrawal Position:
- center
- Overvoltage Category:
- class II IEC 60536
- Type Of Keylock:
- key 3131A || Dom 8D1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
