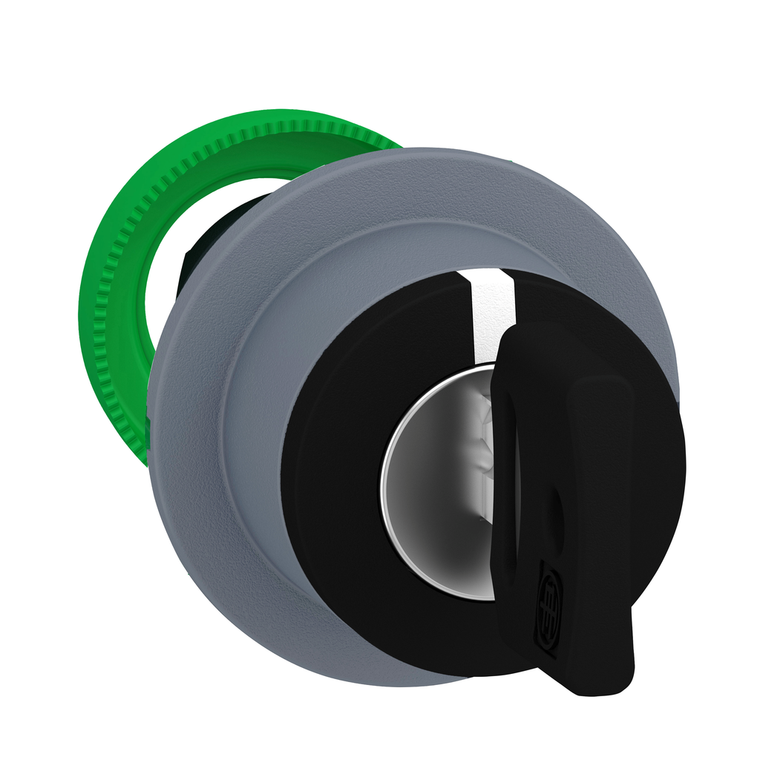

Schneider Electric ZB5FG7C0 Flmnt Sel Sw Head Key 455 3Pos Ret Cen

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FG7C0 Flmnt Sel Sw Head Key 455 3Pos Ret Cen

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FG7C0

UPC:

3.60649E+12

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Width:

37 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ik Degree Of Protection:

IK03 IEC 50102

Device Presentation:

basic element

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards:

UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1

Operator Profile:

black key switch

China Rohs Regulation:

X

Device Short Name:

ZB5

Operator Position Information:

3 positions +/- 45°

Sale Per Indivisible Quantity:

1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Type Of Keylock:

key 455

Mounting Diameter:

30.5 mm

Mercury Free:

Yes

Product Certifications:

UL Listed || CSA || GL || DNV || LROS (Lloyds register of shipping) || BV

Net Weight:

0.069 kg

Electrical Composition Code:

C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3

Key Withdrawal Position:

center

Range Of Product:

Harmony XB5

Overvoltage Category:

class II IEC 60536

Head Type:

built-in-flush

Cad Overall Height:

37 mm

Rohs Exemption Information:

Yes

Type Of Operator:

to centre spring return

Protective Treatment:

TH

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

head for key selector switch

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Bezel Material:

plastic colour plated grey

Cad Overall Depth:

72 mm

Mechanical Durability:

1000000 cycles

Ambient Air Temperature For Storage:

-40-70 °C

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Shape Of Signaling Unit Head:

round
