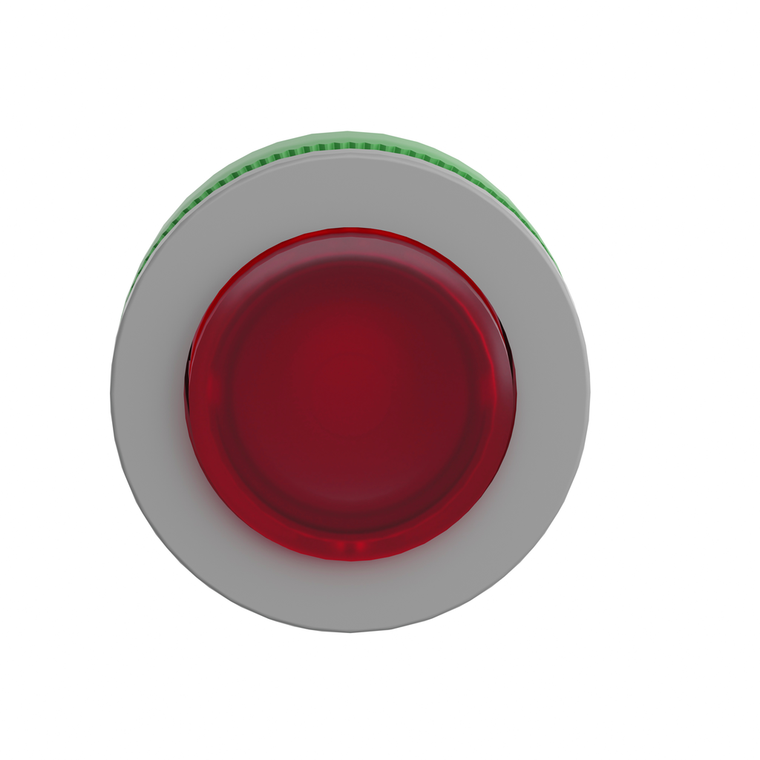

Schneider Electric ZB5FH43C0 Flush Mounted Red Proj Illum Pb Head
Schneider Electric
$47.56
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FH43C0 Flush Mounted Red Proj Illum Pb Head
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ik Degree Of Protection:
- IK03 IEC 50102
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Rohs Exemption Information:
- Yes
- China Rohs Regulation:
- X
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Height:
- 37 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Presentation:
- basic element
- Cad Overall Depth:
- 32 mm
- Product Or Component Type:
- head for illuminated push-button
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Certifications:
- UL Listed || CSA
- Type Of Operator:
- push-push
- Cad Overall Width:
- 37 mm
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB5F
- Sale Per Indivisible Quantity:
- 1
- Reach Free Of Svhc:
- Yes
- Mechanical Durability:
- 500000 cycles
- Operator Profile:
- red projecting, unmarked
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Warranty:
- 18 months
- Net Weight:
- 0.031 kg
- Product Compatibility:
- universal LED
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- plastic colour plated grey
- Mounting Diameter:
- 30.5 mm
- Overvoltage Category:
- class II IEC 60536
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Protective Treatment:
- TH
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- built-in-flush
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Ambient Air Temperature For Storage:
- -40-70 °C
- Mercury Free:
- Yes
- Datasheet:
- View
