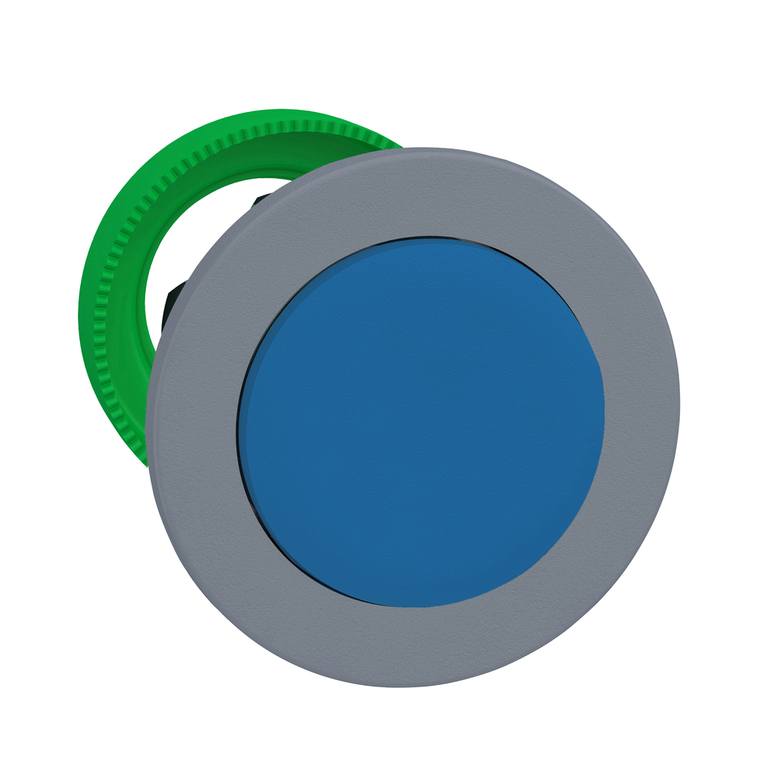

Schneider Electric ZB5FH6C0 Flsmntd Blue Proj Pb Head Push Push

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FH6C0 Flsmntd Blue Proj Pb Head Push Push

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FH6C0

UPC:

3606489773328

MPN:

Condition:

New

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electrical Composition Code:

C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting

Product Or Component Type:

head for non-illuminated push-button

Bezel Material:

plastic colour plated grey

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Net Weight:

0.031 kg

Type Of Operator:

push-push

Warranty:

18 months

Mechanical Durability:

500000 cycles

Ik Degree Of Protection:

IK03 IEC 50102

Range Of Product:

Harmony XB5

Cad Overall Height:

37 mm

Cad Overall Width:

37 mm

Device Short Name:

ZB5F

Protective Treatment:

TH

Ambient Air Temperature For Operation:

-40-70 °C

Cad Overall Depth:

32 mm

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Storage:

-40-70 °C

Head Type:

built-in-flush

Sale Per Indivisible Quantity:

1

Product Certifications:

UL Listed || CSA

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operator Profile:

blue projecting, unmarked

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Diameter:

30.5 mm

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Device Presentation:

basic element

China Rohs Regulation:

X

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Compatibility:

ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ

Overvoltage Category:

class II IEC 60536

Datasheet:

View
