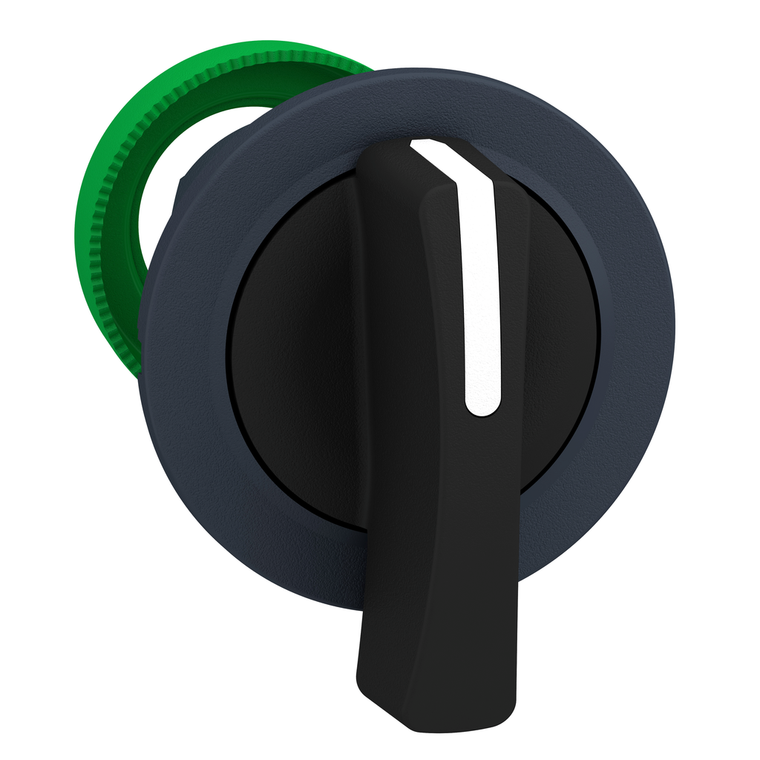

Schneider Electric ZB5FJ4 Flush Mounted Black Selector Switch Head
Schneider Electric
$29.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FJ4 Flush Mounted Black Selector Switch Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.031 kg
- Rohs Exemption Information:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Mounting Diameter:
- 30.5 mm
- China Rohs Regulation:
- X
- Ik Degree Of Protection:
- IK03 IEC 50102
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
- Reach Free Of Svhc:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Additional Information:
- non padlockable
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Bezel Material:
- dark grey plastic
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Depth:
- 46 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || CSA || GL || BV || UL Listed
- Operator Profile:
- black long handle
- Cad Overall Height:
- 37 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- head for selector switch
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Standards:
- EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Device Short Name:
- ZB5
- Operator Position Information:
- 2 positions 90°
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sustainable Offer Status:
- Green Premium product
- Mechanical Durability:
- 1000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Head Type:
- built-in-flush
- Type Of Operator:
- right to left spring return
- Cad Overall Width:
- 37 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Datasheet:
- View
