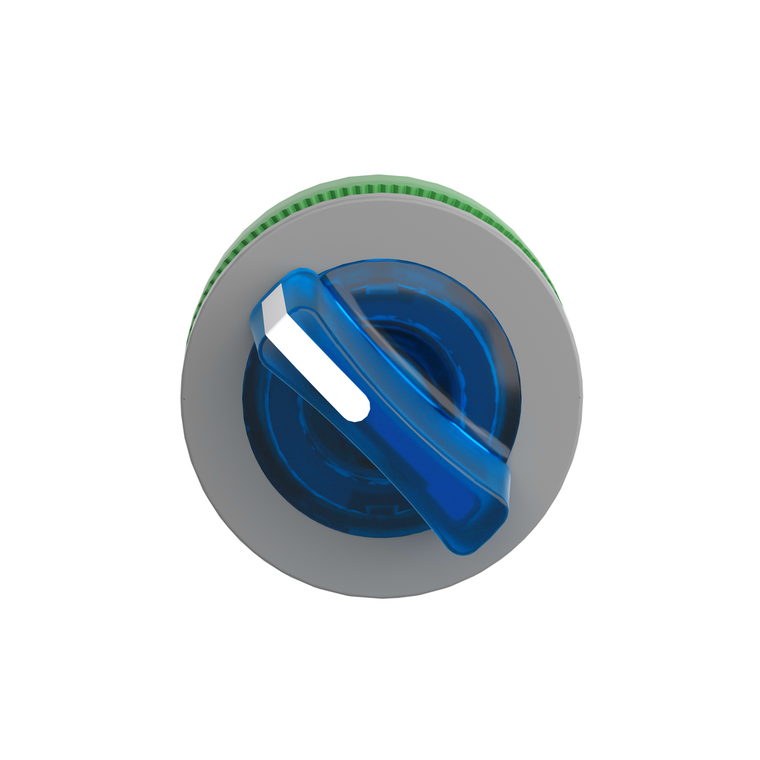

Schneider Electric ZB5FK1263C0 Flmnt Blue Ill Selsw Head 2Pos Stay Put

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FK1263C0 Flmnt Blue Ill Selsw Head 2Pos Stay Put

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FK1263C0

UPC:

3606489753511

MPN:

Condition:

New

Mechanical Durability:

1000000 cycles

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Range Of Product:

Harmony XB5

Cad Overall Height:

37 mm

Mercury Free:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Presentation:

basic element

Device Short Name:

ZB5

Overvoltage Category:

class II IEC 60536

Operator Position Information:

2 positions 90°

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Cad Overall Depth:

46 mm

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Cad Overall Width:

37 mm

Head Type:

built-in-flush

Product Or Component Type:

head for illuminated selector switch

Operator Profile:

blue standard handle

Type Of Operator:

stay put

Mounting Diameter:

30.5 mm

Product Certifications:

BV || UL Listed || DNV || GL || LROS (Lloyds register of shipping) || CSA

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Bezel Material:

plastic colour plated grey

Product Compatibility:

universal LED

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Reach Free Of Svhc:

Yes

Sale Per Indivisible Quantity:

1

Ik Degree Of Protection:

IK03 IEC 50102

China Rohs Regulation:

X

Net Weight:

0.03 kg

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Datasheet:

View
