Schneider Electric ZB5FK1313 Flush Mounted White Illum Selector Switc
Schneider Electric
$35.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FK1313 Flush Mounted White Illum Selector Switc

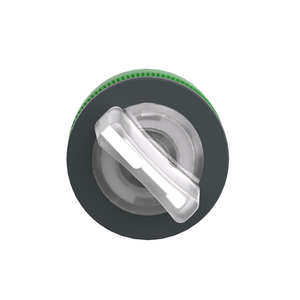

This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Net Weight:
- 0.03 kg
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 46 mm
- Standards:
- UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
- Operator Position Information:
- 3 positions +/- 45°
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Height:
- 37 mm
- Mechanical Durability:
- 500000 cycles
- Head Type:
- built-in-flush
- Mercury Free:
- Yes
- Toxic Heavy Metal Free:
- Yes
- Product Compatibility:
- universal LED
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 37 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || BV || UL Listed || CSA || DNV || GL
- Device Short Name:
- ZB5
- Sale Per Indivisible Quantity:
- 1
- Circularity Profile:
- ENVEOLI1710010EN
- Protective Treatment:
- TH
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Mounting Diameter:
- 30.5 mm
- Product Or Component Type:
- head for illuminated selector switch
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Operator Profile:
- white standard handle
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Type Of Operator:
- stay put
- Bezel Material:
- dark grey plastic
- Overvoltage Category:
- class II IEC 60536
