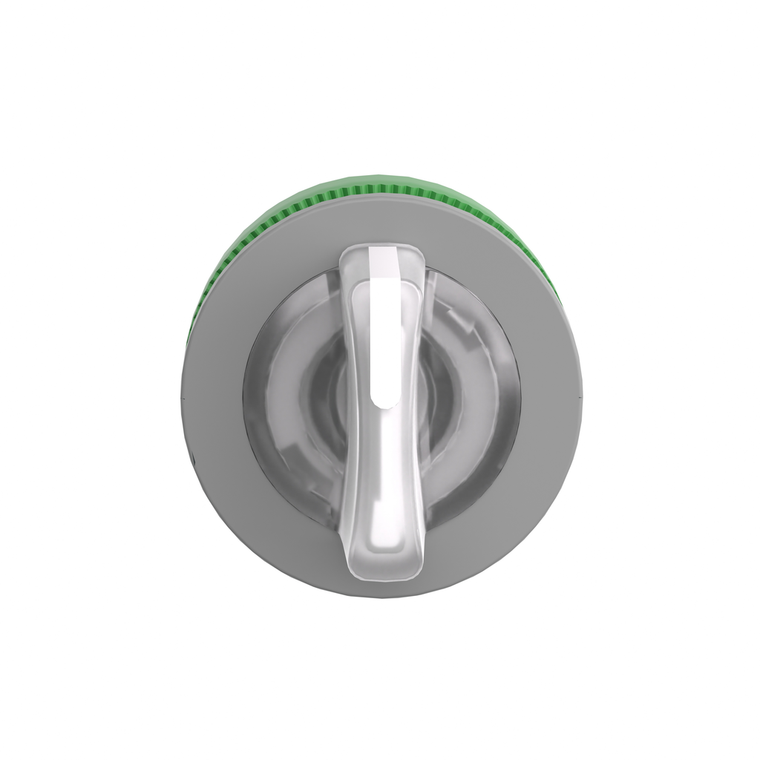

Schneider Electric ZB5FK1313C0 Flmnt White Ill Selsw Head 3Pos Stay Put

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FK1313C0 Flmnt White Ill Selsw Head 3Pos Stay Put

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FK1313C0

UPC:

3606489753559

MPN:

Condition:

New

Mechanical Durability:

500000 cycles

Product Or Component Type:

head for illuminated selector switch

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Ik Degree Of Protection:

IK03 IEC 50102

Reach Free Of Svhc:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Product Certifications:

LROS (Lloyds register of shipping) || BV || UL Listed || CSA || DNV || GL

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Bezel Material:

plastic colour plated grey

Type Of Operator:

stay put

Net Weight:

0.03 kg

Cad Overall Height:

37 mm

Mounting Diameter:

30.5 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Cad Overall Depth:

46 mm

Overvoltage Category:

class II IEC 60536

Head Type:

built-in-flush

Cad Overall Width:

37 mm

Device Short Name:

ZB5

Product Compatibility:

universal LED

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Signaling Unit Head:

round

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Sale Per Indivisible Quantity:

1

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Operator Profile:

white standard handle

Standards:

UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1

Toxic Heavy Metal Free:

Yes

Range Of Product:

Harmony XB5

Device Presentation:

basic element

Electrical Composition Code:

M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operator Position Information:

3 positions +/- 45°

Ambient Air Temperature For Operation:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Datasheet:

View
