Schneider Electric ZB5FK1443 Flush Mounted Red Illum Selector Switch
Schneider Electric
$51.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

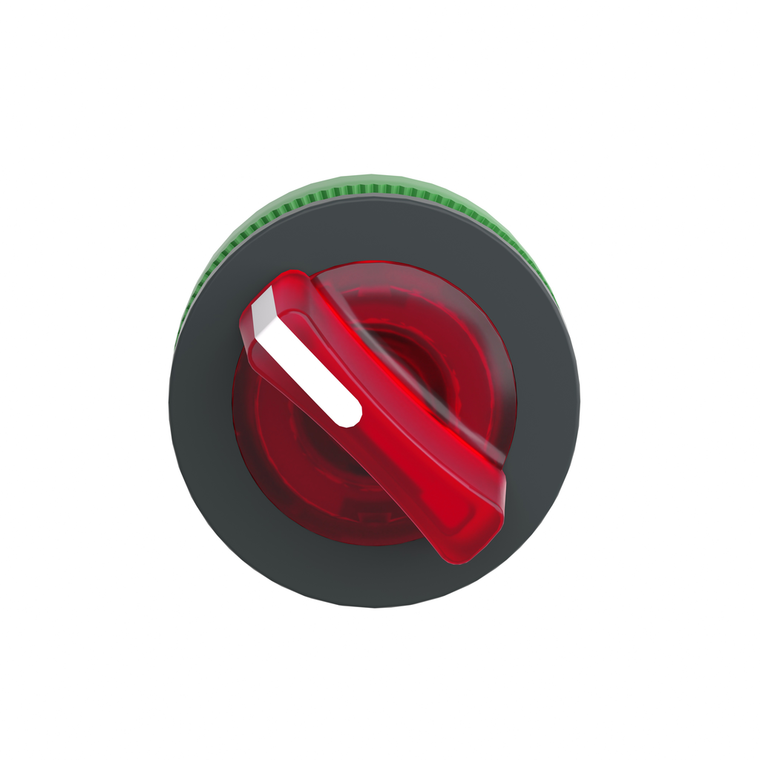

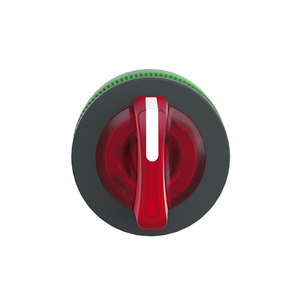

Schneider Electric ZB5FK1443 Flush Mounted Red Illum Selector Switch
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Head Type:
- built-in-flush
- Operator Position Information:
- 2 positions 90°
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.03 kg
- Mechanical Durability:
- 500000 cycles
- Sale Per Indivisible Quantity:
- 1
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- head for illuminated selector switch
- Range Of Product:
- Harmony XB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 46 mm
- Circularity Profile:
- ENVEOLI1710010EN
- Product Compatibility:
- universal LED
- Type Of Operator:
- right to left spring return
- Product Certifications:
- BV || UL Listed || DNV || GL || LROS (Lloyds register of shipping) || CSA
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 30.5 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Toxic Heavy Metal Free:
- Yes
- Standards:
- JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- Environmental Disclosure:
- ENVPEP1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Bezel Material:
- dark grey plastic
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Device Short Name:
- ZB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mercury Free:
- Yes
- Cad Overall Height:
- 37 mm
- Overvoltage Category:
- class II IEC 60536
- China Rohs Regulation:
- X
- Operator Profile:
- red standard handle
- Cad Overall Width:
- 37 mm
- Datasheet:
- View
