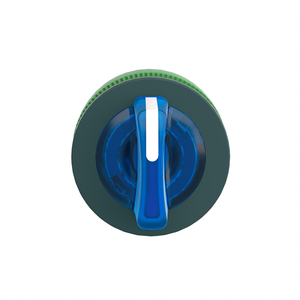

Schneider Electric ZB5FK1463 Flush Mounted Blue Illum Selector Switch

Schneider Electric ZB5FK1463 Flush Mounted Blue Illum Selector Switch

Schneider Electric
SKU:
ZB5FK1463
|
UPC:
3606481340344
Availability:
Contact us to confirm availability and lead times.
$51.30
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Additional Information
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Overvoltage Category:
class II IEC 60536
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Compatibility:
universal LED
Cad Overall Depth:
46 mm
Range Of Product:
Harmony XB5
Cad Overall Height:
37 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mechanical Durability:
500000 cycles
Standards:
EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-1
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Toxic Heavy Metal Free:
Yes
Net Weight:
0.03 kg
Product Certifications:
DNV || UL Listed || GL || LROS (Lloyds register of shipping) || CSA || BV
Ambient Air Temperature For Storage:
-40-70 °C
Ambient Air Temperature For Operation:
-40-70 °C
Device Short Name:
ZB5
China Rohs Regulation:
X
Bezel Material:
dark grey plastic
Cad Overall Width:
37 mm
Type Of Operator:
right to left spring return
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Mercury Free:
Yes
Sale Per Indivisible Quantity:
1
Operator Position Information:
2 positions 90°
Mounting Diameter:
30.5 mm
Rohs Exemption Information:
Yes
Product Or Component Type:
head for illuminated selector switch
Operator Profile:
blue standard handle
Environmental Disclosure:
ENVPEP1710010EN
Shape Of Signaling Unit Head:
round
Ik Degree Of Protection:
IK03 IEC 50102
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Sustainable Offer Status:
Green Premium product
Head Type:
built-in-flush
Protective Treatment:
TH
Circularity Profile:
ENVEOLI1710010EN
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Electrical Composition Code:
M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
Reach Free Of Svhc:
Yes
