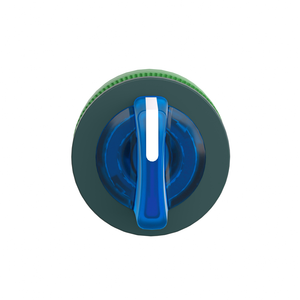

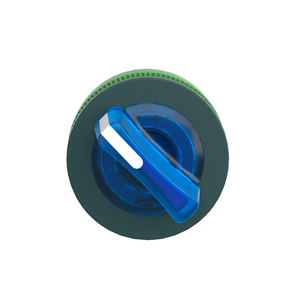

Schneider Electric ZB5FK1863 Flush Mounted Blue Illum Selector Switch
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Electrical Composition Code:
- M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Height:
- 37 mm
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shape Of Signaling Unit Head:
- round
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- China Rohs Regulation:
- X
- Product Compatibility:
- universal LED
- Environmental Disclosure:
- ENVPEP1710010EN
- Mercury Free:
- Yes
- Net Weight:
- 0.03 kg
- Type Of Operator:
- right to centre spring return
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Mechanical Durability:
- 500000 cycles
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Depth:
- 46 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Toxic Heavy Metal Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Head Type:
- built-in-flush
- Cad Overall Width:
- 37 mm
- Protective Treatment:
- TH
- Product Or Component Type:
- head for illuminated selector switch
- Rohs Exemption Information:
- Yes
- Operator Profile:
- blue standard handle
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Reach Free Of Svhc:
- Yes
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB5
- Operator Position Information:
- 3 positions +/- 45°
- Sustainable Offer Status:
- Green Premium product
- Mounting Diameter:
- 30.5 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || GL || BV || CSA || DNV || UL Listed
- Circularity Profile:
- ENVEOLI1710010EN
- Standards:
- EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Sale Per Indivisible Quantity:
- 1
