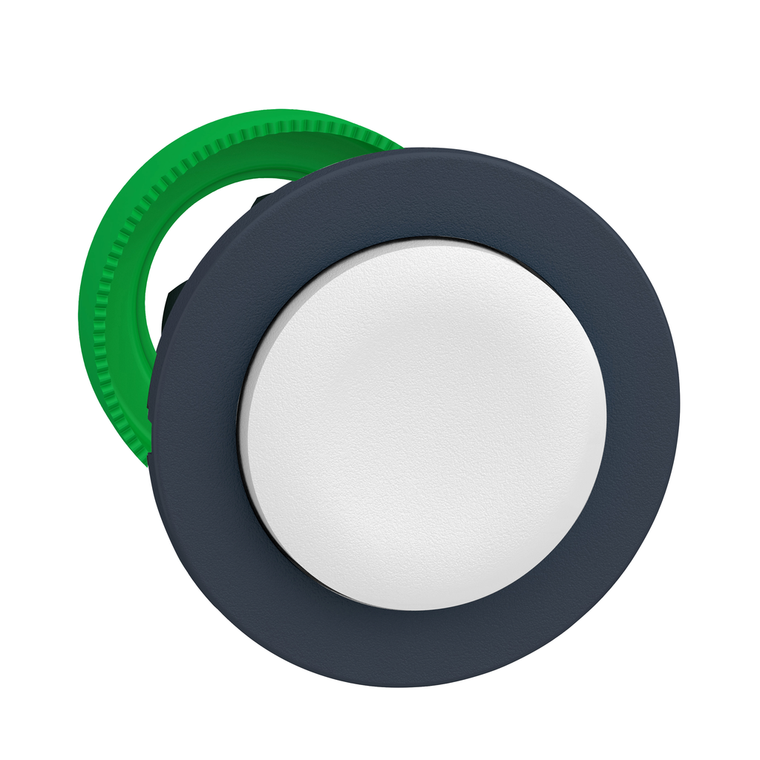

Schneider Electric ZB5FL1 Flush Mounted White Projecting Pushbutto
This 30 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Warranty:
- 18 months
- Sale Per Indivisible Quantity:
- 1
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.031 kg
- Sustainable Offer Status:
- Green Premium product
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Type Of Operator:
- spring return
- Ik Degree Of Protection:
- IK03 IEC 50102
- Head Type:
- built-in-flush
- Circularity Profile:
- ENVEOLI1710010EN
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Diameter:
- 30.5 mm
- Shape Of Signaling Unit Head:
- round
- Mechanical Durability:
- 10000000 cycles
- Standards:
- EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
- Product Certifications:
- UL Listed || DNV || CSA || GL || LROS (Lloyds register of shipping) || BV
- Protective Treatment:
- TH
- Bezel Material:
- dark grey plastic
- Device Short Name:
- ZB5
- China Rohs Regulation:
- X
- Cad Overall Height:
- 37 mm
- Product Or Component Type:
- head for non-illuminated push-button
- Device Presentation:
- basic element
- Cad Overall Width:
- 37 mm
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Operator Profile:
- white projecting, unmarked
- Cad Overall Depth:
- 32 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
