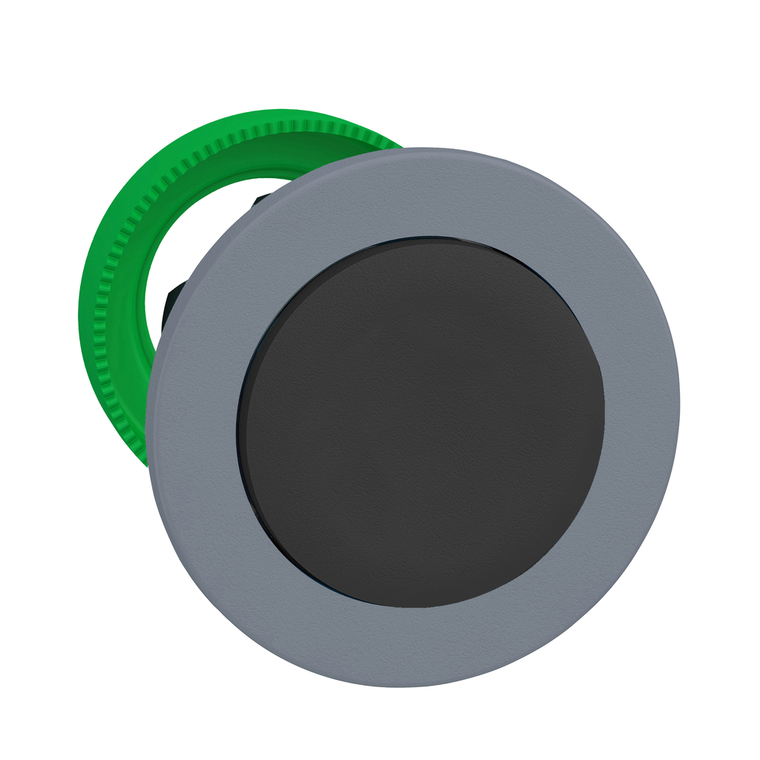

Schneider Electric ZB5FL2C0 Flush Mounted Black Projecting Pb Head

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FL2C0 Flush Mounted Black Projecting Pb Head

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FL2C0

UPC:

3.60649E+12

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Bezel Material:

plastic colour plated grey

Cad Overall Height:

37 mm

Protective Treatment:

TH

Mounting Diameter:

30.5 mm

Cad Overall Width:

37 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Short Name:

ZB5

Cad Overall Depth:

32 mm

Product Compatibility:

ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ

Sale Per Indivisible Quantity:

1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Net Weight:

0.031 kg

Head Type:

built-in-flush

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Device Presentation:

basic element

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-70 °C

Type Of Operator:

spring return

Warranty:

18 months

Mercury Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-40-70 °C

Product Or Component Type:

head for non-illuminated push-button

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting

Ik Degree Of Protection:

IK03 IEC 50102

Range Of Product:

Harmony XB5

Mechanical Durability:

10000000 cycles

Operator Profile:

black projecting, unmarked

Product Certifications:

DNV || UL Listed || BV || GL || CSA || LROS (Lloyds register of shipping)

Overvoltage Category:

class II IEC 60536

China Rohs Regulation:

X

Shape Of Signaling Unit Head:

round

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Datasheet:

View
