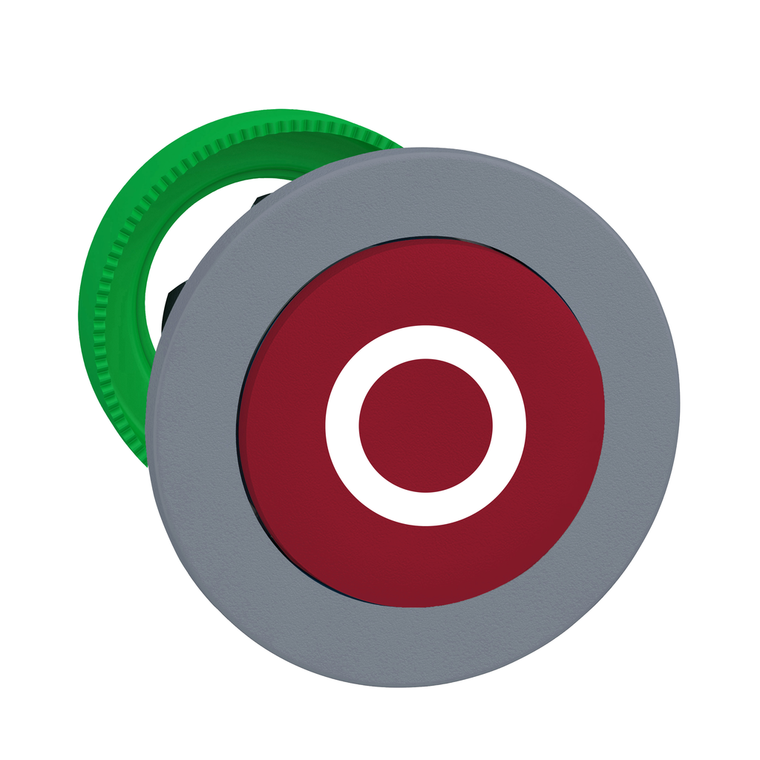

Schneider Electric ZB5FL432C0 Flsmntd Red Proj Pb Head White Mark O
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Product Or Component Type:
- head for non-illuminated push-button
- Ambient Air Temperature For Operation:
- -40-70 °C
- Protective Treatment:
- TH
- Operator Profile:
- red projecting, O white)
- Product Certifications:
- UL Listed || CSA
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 37 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Overvoltage Category:
- class II IEC 60536
- Range Of Product:
- Harmony XB5
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Head Type:
- built-in-flush
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Type Of Operator:
- spring return
- Net Weight:
- 0.031 kg
- Mercury Free:
- Yes
- Cad Overall Depth:
- 32 mm
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Cad Overall Width:
- 37 mm
- China Rohs Regulation:
- X
- Bezel Material:
- plastic colour plated grey
- Ik Degree Of Protection:
- IK03 IEC 50102
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 30.5 mm
- Device Short Name:
- ZB5F
