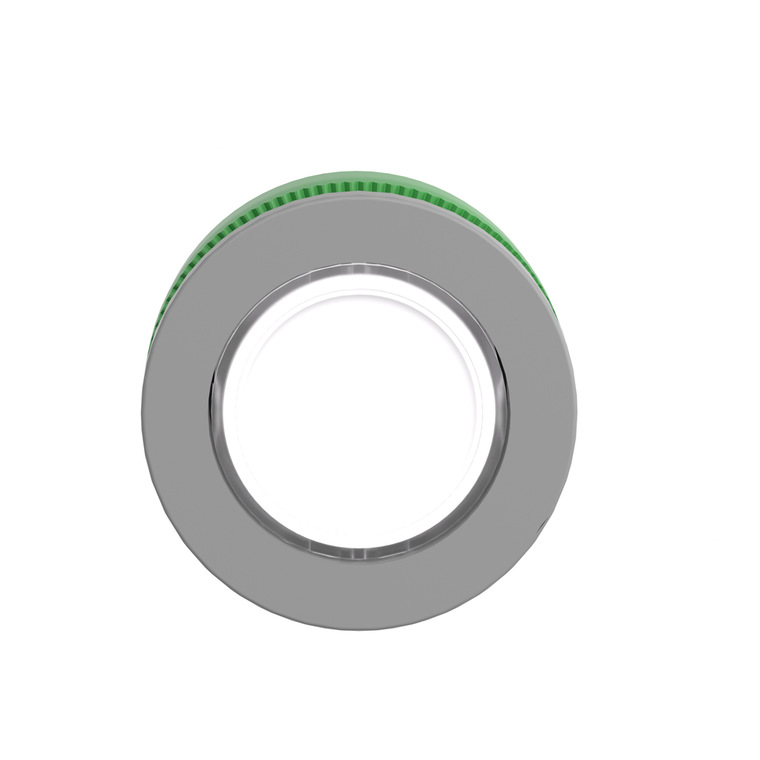

Schneider Electric ZB5FV013C0 Flsmntd White Pilotlight Head-Int Led

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5FV013C0 Flsmntd White Pilotlight Head-Int Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FV013C0

UPC:

3606489754372

MPN:

Condition:

New

Range Of Product:

Harmony XB5

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Reach Free Of Svhc:

Yes

Mounting Diameter:

30.5 mm

Mercury Free:

Yes

Overvoltage Category:

class II IEC 60536

Rohs Exemption Information:

Yes

Device Presentation:

basic element

Ambient Air Temperature For Storage:

-40-70 °C

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

30 mm

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Product Or Component Type:

head for pilot light

Cad Overall Width:

37 mm

Bezel Material:

plastic colour plated grey

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Product Compatibility:

universal LED

Shape Of Signaling Unit Head:

round

Cap/Operator Or Lens Colour:

white

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Electrical Composition Code:

P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED

Sale Per Indivisible Quantity:

1

Cad Overall Height:

37 mm

Ik Degree Of Protection:

IK03 IEC 50102

Toxic Heavy Metal Free:

Yes

China Rohs Regulation:

X

Head Type:

built-in-flush

Net Weight:

0.015 kg

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Protective Treatment:

TH

Device Short Name:

ZB5

Operator Additional Information:

with plain lens

Ambient Air Temperature For Operation:

-40-70 °C

Datasheet:

View
