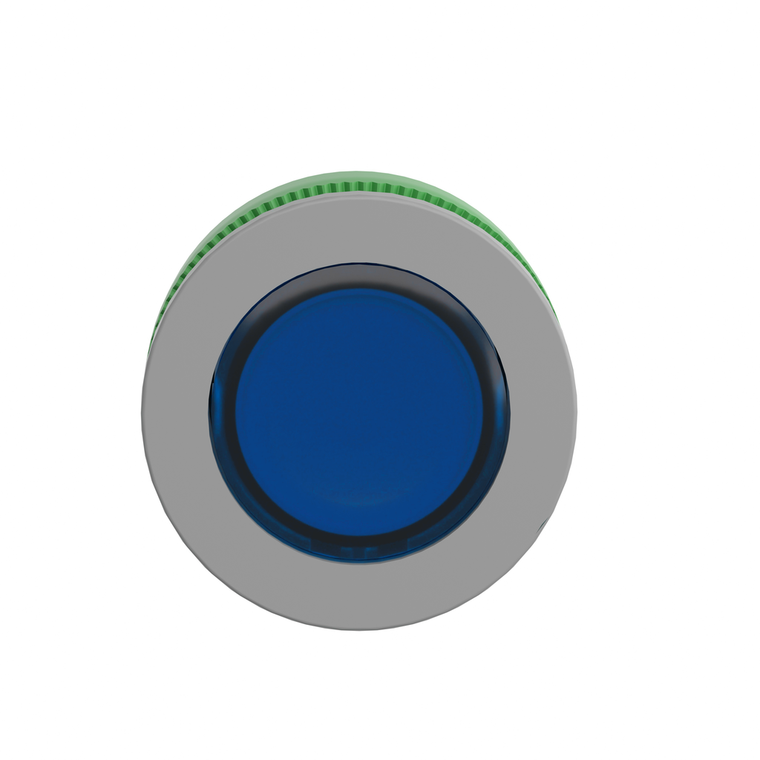

Schneider Electric ZB5FV063C0 Flsmntd Blue Pilotlight Head-Int Led

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5FV063C0 Flsmntd Blue Pilotlight Head-Int Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FV063C0

UPC:

3606489754457

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Width:

37 mm

Mercury Free:

Yes

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Bezel Material:

plastic colour plated grey

China Rohs Regulation:

X

Rohs Exemption Information:

Yes

Cap/Operator Or Lens Colour:

blue

Range Of Product:

Harmony XB5

Net Weight:

0.015 kg

Sale Per Indivisible Quantity:

1

Operator Additional Information:

with plain lens

Head Type:

built-in-flush

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

head for pilot light

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Diameter:

30.5 mm

Cad Overall Depth:

30 mm

Reach Free Of Svhc:

Yes

Electrical Composition Code:

P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Operation:

-40-70 °C

Standards:

UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1

Product Compatibility:

universal LED

Cad Overall Height:

37 mm

Overvoltage Category:

class II IEC 60536

Device Short Name:

ZB5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ik Degree Of Protection:

IK03 IEC 50102

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Device Presentation:

basic element

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Signaling Unit Head:

round

Datasheet:

View
