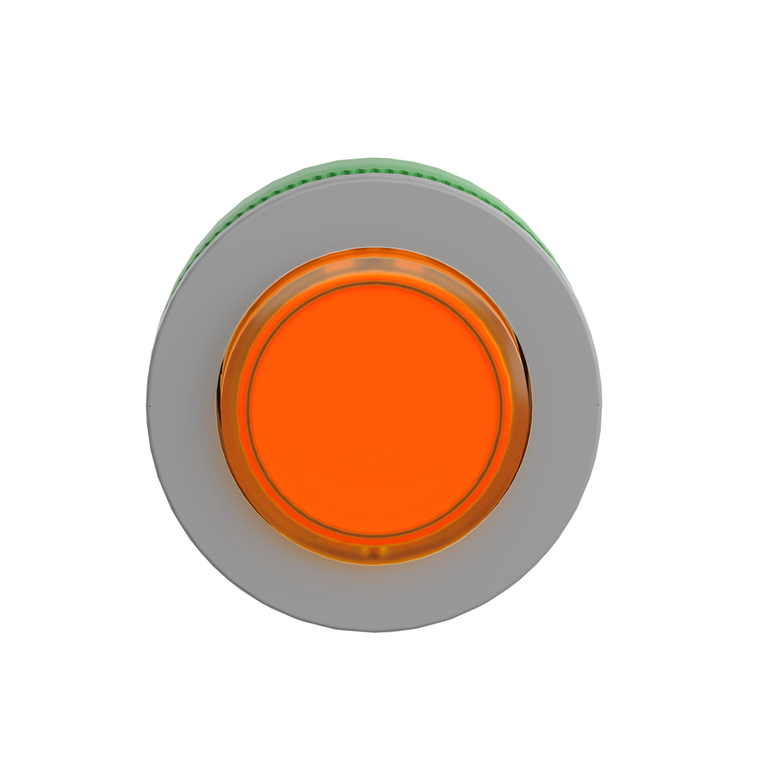

Schneider Electric ZB5FW153C0 Flmnt Orange Proj Illum Pbhead-Int Led

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FW153C0 Flmnt Orange Proj Illum Pbhead-Int Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FW153C0

UPC:

3606489754556

MPN:

Condition:

New

Mechanical Durability:

10000000 cycles

Ik Degree Of Protection:

IK03 IEC 50102

Operator Profile:

orange projecting, unmarked

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

China Rohs Regulation:

X

Device Short Name:

ZB5F

Reach Free Of Svhc:

Yes

Device Presentation:

basic element

Rohs Exemption Information:

Yes

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Warranty:

18 months

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Product Certifications:

UL Listed || CSA

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Standards:

UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Ambient Air Temperature For Operation:

-40-70 °C

Cad Overall Height:

37 mm

Electrical Composition Code:

M1 6 single front mounting || M2 6 single and double front mounting || M10 2 single front mounting || M6 2 single front mounting || MF1 2 single front mounting

Protective Treatment:

TH

Range Of Product:

Harmony XB5

Head Type:

built-in-flush

Cad Overall Depth:

32 mm

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

Bezel Material:

plastic colour plated grey

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Cad Overall Width:

37 mm

Net Weight:

0.031 kg

Sale Per Indivisible Quantity:

1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Or Component Type:

head for illuminated push-button

Mercury Free:

Yes

Toxic Heavy Metal Free:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Product Compatibility:

universal LED

Mounting Diameter:

30.5 mm

Type Of Operator:

spring return

Shape Of Signaling Unit Head:

round
