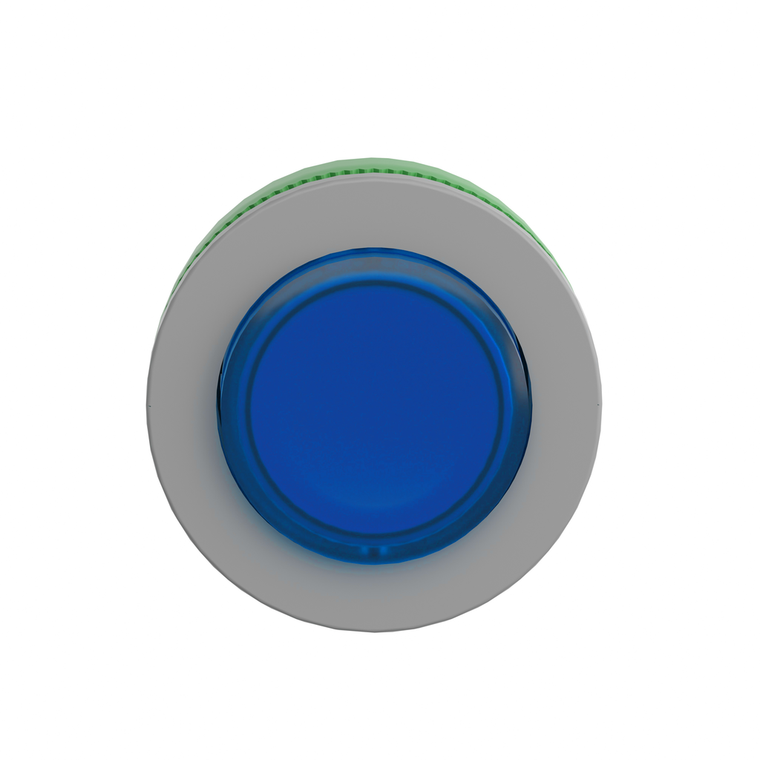

Schneider Electric ZB5FW163C0 Flsmntd Blue Proj Illum Pb Head-Int Led
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL Listed || CSA
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Width:
- 37 mm
- Bezel Material:
- plastic colour plated grey
- Ambient Air Temperature For Operation:
- -40-70 °C
- Type Of Operator:
- spring return
- Operator Profile:
- blue projecting, unmarked
- Reach Free Of Svhc:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Cad Overall Depth:
- 32 mm
- Mounting Diameter:
- 30.5 mm
- Electrical Composition Code:
- M1 6 single front mounting || M2 6 single and double front mounting || M10 2 single front mounting || M6 2 single front mounting || MF1 2 single front mounting
- Net Weight:
- 0.031 kg
- Product Compatibility:
- universal LED
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Head Type:
- built-in-flush
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Storage:
- -40-70 °C
- Warranty:
- 18 months
- Overvoltage Category:
- class II IEC 60536
- Mercury Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Mechanical Durability:
- 10000000 cycles
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Toxic Heavy Metal Free:
- Yes
- Protective Treatment:
- TH
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Device Short Name:
- ZB5F
- Device Presentation:
- basic element
- Sale Per Indivisible Quantity:
- 1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Height:
- 37 mm
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
