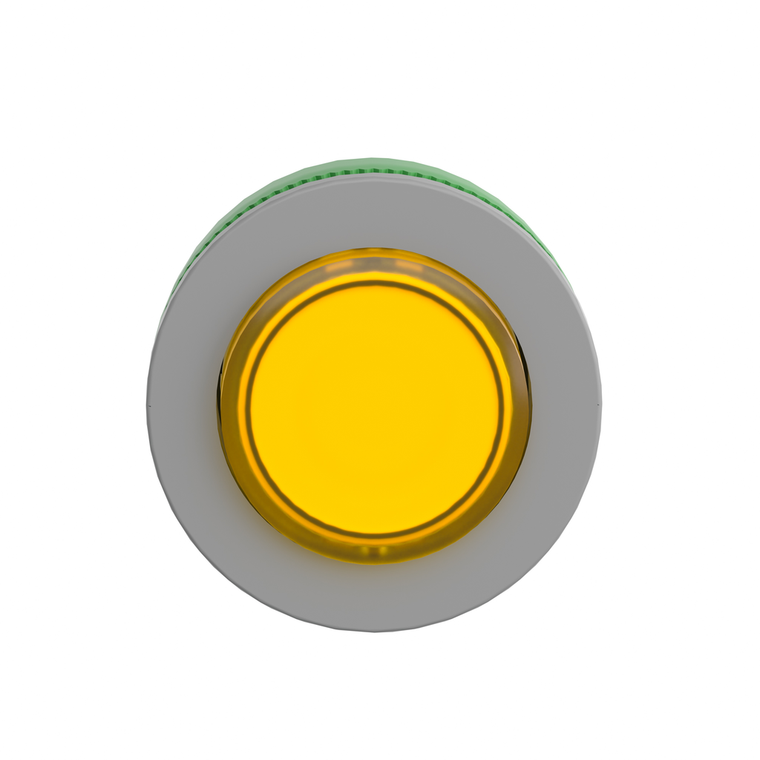

Schneider Electric ZB5FW183C0 Flmnt Zb5 Yellow Illpb Led Proj Plinlens

Schneider Electric ZB5FW183C0 Flmnt Zb5 Yellow Illpb Led Proj Plinlens

Schneider Electric
SKU:
ZB5FW183C0
|
UPC:
3606489754594
Availability:
Contact us to confirm availability and lead times.
$22.46
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

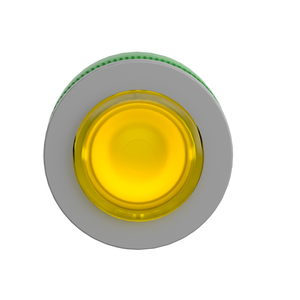

This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Additional Information
Cad Overall Height:
37 mm
Ik Degree Of Protection:
IK03 IEC 50102
Reach Free Of Svhc:
Yes
Protective Treatment:
TH
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Cad Overall Width:
37 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Compatibility:
universal LED
Mounting Diameter:
30.5 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
-40-70 °C
Shape Of Signaling Unit Head:
round
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
China Rohs Regulation:
X
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529
Head Type:
built-in-flush
Electrical Composition Code:
M1 6 single front mounting || M2 6 single and double front mounting || M10 2 single front mounting || M6 2 single front mounting || MF1 2 single front mounting
Operator Profile:
yellow projecting, unmarked
Ambient Air Temperature For Storage:
-40-70 °C
Bezel Material:
plastic colour plated grey
Type Of Operator:
spring return
Overvoltage Category:
class II IEC 60536
Mercury Free:
Yes
Standards:
UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Product Or Component Type:
head for illuminated push-button
Sale Per Indivisible Quantity:
1
Device Short Name:
ZB5F
Device Presentation:
basic element
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Net Weight:
0.03 kg
Mechanical Durability:
10000000 cycles
Range Of Product:
Harmony XB5
Rohs Exemption Information:
Yes
Product Certifications:
UL Listed || CSA
Cad Overall Depth:
30 mm
