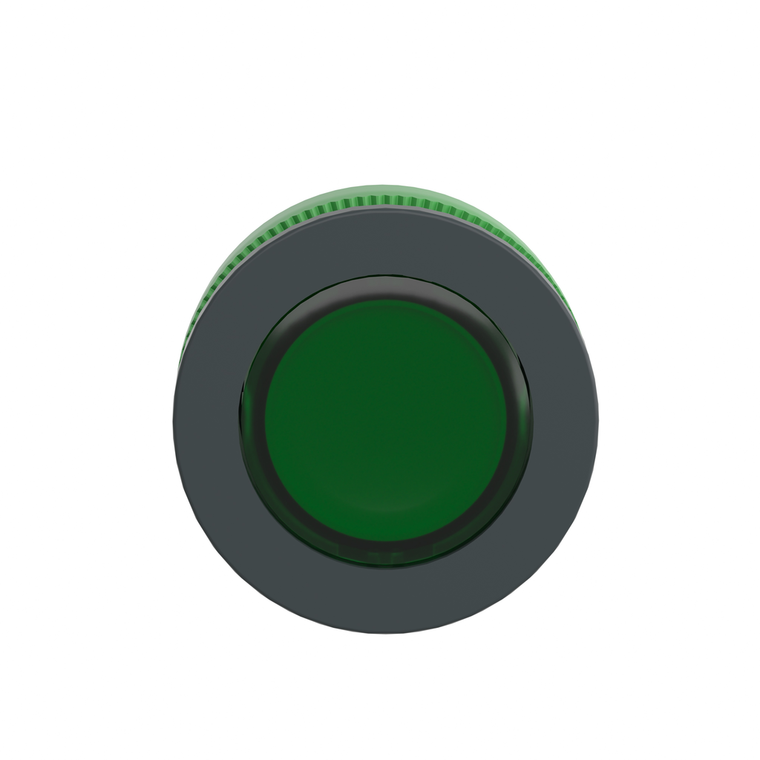

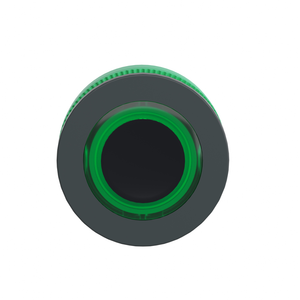

Schneider Electric ZB5FW333 Flush Mounted Green Flush Caps Illum Pus

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB5FW333 Flush Mounted Green Flush Caps Illum Pus

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FW333

UPC:

3606481339676

MPN:

Condition:

New

Cap/Operator Or Lens Colour:

green

Head Type:

built-in-flush

Product Certifications:

LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || GL || BV

Product Compatibility:

universal LED

Device Short Name:

ZB5

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Standards:

IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || GB 14048.5 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011

Group Of Product:

flush push integral LED

Cad Overall Depth:

30 mm

Marking:

unmarked

Shape Of Signaling Unit Head:

round

Bezel Material:

dark grey plastic

Cad Overall Width:

37 mm

Rohs Exemption Information:

Yes

Sale Per Indivisible Quantity:

1

Net Weight:

0.017 kg

Range Of Product:

Harmony XB5

Main Group:

illum push-button

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Overvoltage Category:

class II IEC 60536

Cad Overall Height:

37 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operator Additional Information:

with plain lens

Circularity Profile:

ENVEOLI1710010EN

Toxic Heavy Metal Free:

Yes

Protective Treatment:

TC

Ambient Air Temperature For Storage:

-40-70 °C

Product Or Component Type:

head for illuminated push-button

Mounting Diameter:

30.5 mm

Environmental Disclosure:

ENVPEP1710010EN

Type Of Operator:

spring return

Sustainable Offer Status:

Green Premium product

Device Presentation:

basic element

Mercury Free:

Yes

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Operator Profile:

green flush, unmarked

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Mechanical Durability:

10000000 cycles

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ik Degree Of Protection:

IK03 IEC 62262

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED

Ambient Air Temperature For Operation:

-40-70 °C

Datasheet:

View
