Schneider Electric ZB5FW333C0 Flsmntd Green Cap Illum Pb Head-Int Led
Schneider Electric
$18.96
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

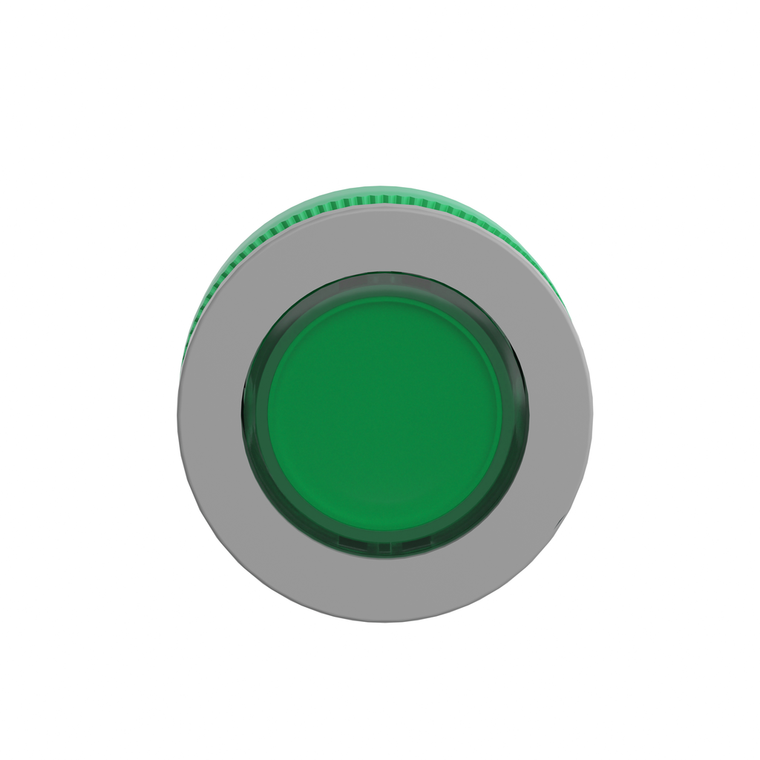

Schneider Electric ZB5FW333C0 Flsmntd Green Cap Illum Pb Head-Int Led
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Type Of Operator:
- spring return
- Protective Treatment:
- TC
- Cad Overall Height:
- 37 mm
- Ik Degree Of Protection:
- IK03 EN 50102
- Cad Overall Width:
- 37 mm
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || GL || BV
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- Device Presentation:
- basic element
- Range Of Product:
- Harmony XB5
- Bezel Material:
- plastic colour plated grey
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for illuminated push-button
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Net Weight:
- 0.017 kg
- Marking:
- unmarked
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Rohs Exemption Information:
- Yes
- Operator Additional Information:
- with plain lens
- Mercury Free:
- Yes
- Head Type:
- built-in-flush
- Cad Overall Depth:
- 30 mm
- Main Group:
- illum push-button
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Mechanical Durability:
- 10000000 cycles
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Short Name:
- ZB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Standards:
- EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || GB 14048.5 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
- Group Of Product:
- flush push integral LED
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Product Compatibility:
- universal LED
- Operator Profile:
- green flush, unmarked
- Cap/Operator Or Lens Colour:
- green
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mounting Diameter:
- 30.5 mm
- China Rohs Regulation:
- X
- Datasheet:
- View
