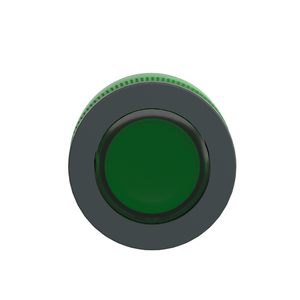

Schneider Electric ZB5FW933 Flush Mounted Green Flush Caps Illum Pus

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FW933 Flush Mounted Green Flush Caps Illum Pus

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FW933

UPC:

3606481339713

MPN:

Condition:

New

Shape Of Signaling Unit Head:

round

Overvoltage Category:

class II IEC 60536

Environmental Disclosure:

ENVPEP1710010EN

Sale Per Indivisible Quantity:

1

Standards:

UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || GB 14048.5 || CSA C22.2 No 14 || JIS C8201-1

Protective Treatment:

TC

Reach Free Of Svhc:

Yes

Range Of Product:

Harmony XB5

Ik Degree Of Protection:

IK03 EN 50102

Marking:

unmarked

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Main Group:

illum push-button

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Head Type:

built-in-flush

Type Of Operator:

spring return

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

GL || BV || LROS (Lloyds register of shipping) || CSA || DNV || UL Listed

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Ambient Air Temperature For Operation:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mounting Diameter:

30.5 mm

Circularity Profile:

ENVEOLI1710010EN

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Device Short Name:

ZB5

Cap/Operator Or Lens Colour:

green

Operator Profile:

green flush, unmarked

Mechanical Durability:

10000000 cycles

Operator Additional Information:

with illuminated ring

Product Compatibility:

universal LED

Bezel Material:

dark grey plastic

Cad Overall Height:

37 mm

Toxic Heavy Metal Free:

Yes

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Net Weight:

0.017 kg

Group Of Product:

flush push with ring illum LED

Cad Overall Depth:

30 mm

Cad Overall Width:

37 mm

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED

Product Or Component Type:

head for illuminated push-button

Mercury Free:

Yes

China Rohs Regulation:

X
