Schneider Electric ZB6AE3 Illuminated Pushbut To N Head Diam 16 Gr

Schneider Electric ZB6AE3 Illuminated Pushbut To N Head Diam 16 Gr

Schneider Electric
SKU:
ZB6AE3
|
UPC:
3389110776300
$21.60
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

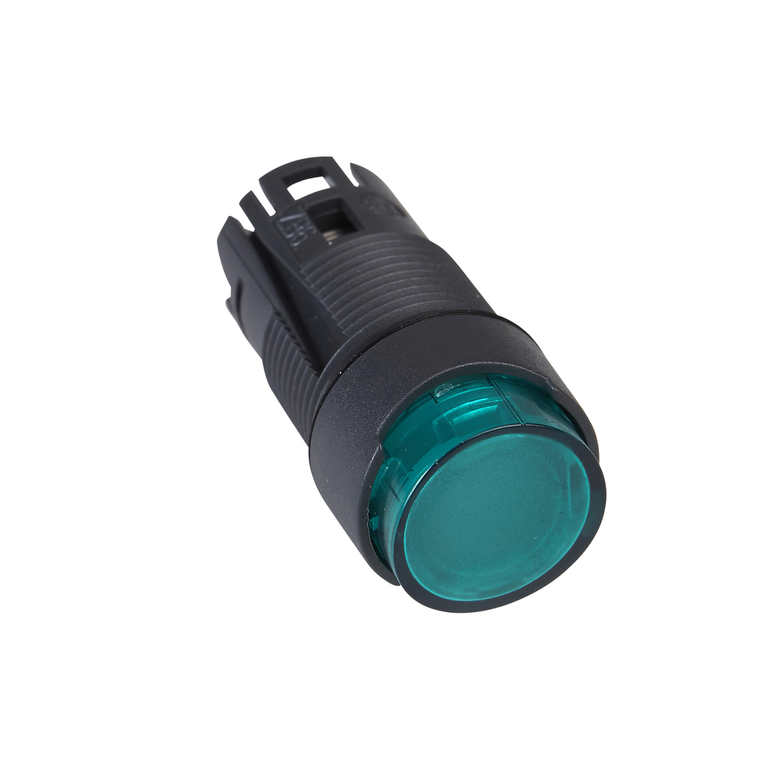

This Harmony ZB6AE3 is a green projecting illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Additional Information
Circularity Profile:
ENVEOLI1710010EN
Ambient Air Temperature For Storage:
-40-70 °C
Mounting Diameter:
16 mm
Warranty:
18 months
Ambient Air Temperature For Operation:
-25-70 °C
Cad Overall Depth:
36 mm
Cad Overall Width:
18 mm
Electrical Shock Protection Class:
class II IEC 61140
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Sustainable Offer Status:
Green Premium product
Operator Profile:
green projecting, unmarked
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 || NEMA 13 CSA C22.2 No 94
Protective Treatment:
TC
Device Short Name:
ZB6
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Reach Free Of Svhc:
Yes
Range Of Product:
Harmony XB6
Product Certifications:
GOST || CCC || UL || CSA
Bezel Material:
plastic
Environmental Disclosure:
ENVPEP1710010EN
China Rohs Regulation:
X
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cad Overall Height:
18 mm
Product Or Component Type:
head for illuminated push-button
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Toxic Heavy Metal Free:
Yes
Net Weight:
0.016 kg
Shape Of Signaling Unit Head:
round
Ip Degree Of Protection:
IP65 IEC 60529
Type Of Operator:
spring return
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Compatibility:
integral LED
Standards:
JIS C8201-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
Sale Per Indivisible Quantity:
1
