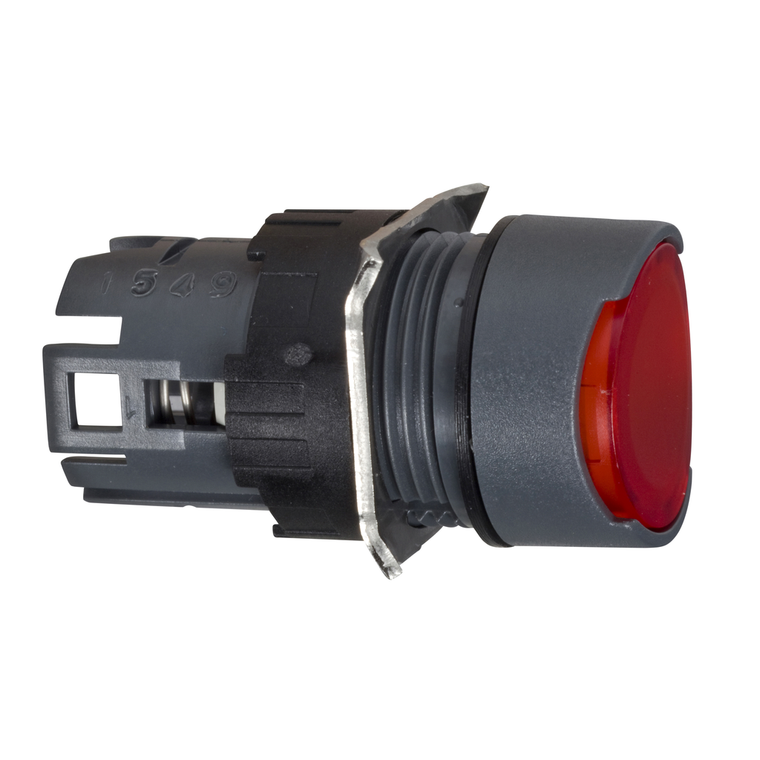

Schneider Electric ZB6AF4 Illuminated Pushbut To N Head Diam 16 Re

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6AF4 Illuminated Pushbut To N Head Diam 16 Re

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6AF4

UPC:

3.38911E+12

MPN:

Condition:

New

Mercury Free:

Yes

Type Of Operator:

latching

Ip Degree Of Protection:

IP65 IEC 60529

Ambient Air Temperature For Storage:

-40-70 °C

Protective Treatment:

TC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

ZB6

Bezel Material:

plastic

Cad Overall Height:

18 mm

Product Certifications:

CCC || CSA || UL || GOST

Sale Per Indivisible Quantity:

1

Ambient Air Temperature For Operation:

-25-70 °C

Warranty:

18 months

Range Of Product:

Harmony XB6

Shape Of Signaling Unit Head:

round

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Mounting Diameter:

16 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Toxic Heavy Metal Free:

Yes

Standards:

UL 508 || JIS C8201-5-1 || JIS C 852 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1

Product Compatibility:

integral LED

Electrical Shock Protection Class:

class II IEC 61140

Net Weight:

0.016 kg

Environmental Disclosure:

ENVPEP1710010EN

China Rohs Regulation:

X

Product Or Component Type:

head for illuminated push-button

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Operator Profile:

red flush, unmarked

Mechanical Durability:

300000 cycles

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

ENVEOLI1710010EN

Cad Overall Depth:

33 mm

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Reach Free Of Svhc:

Yes

Cad Overall Width:

18 mm

Rohs Exemption Information:

Yes
