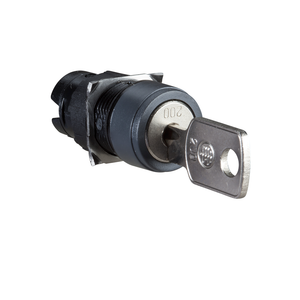

Schneider Electric ZB6AGB Selec To R Switch Head Lockable 2 Positi

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6AGB Selec To R Switch Head Lockable 2 Positi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6AGB

UPC:

3.38911E+12

MPN:

Condition:

New

Electrical Shock Protection Class:

class II IEC 61140

Operator Position Information:

2 positions

Protective Treatment:

TC

Ambient Air Temperature For Storage:

-40-70 °C

Key Withdrawal Position:

center

Toxic Heavy Metal Free:

Yes

Type Of Keylock:

key 200

Ip Degree Of Protection:

IP65 IEC 60529

Product Certifications:

GOST || CCC || CSA || UL

Shape Of Signaling Unit Head:

round

Environmental Disclosure:

ENVPEP1710010EN

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-25-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Device Short Name:

ZB6

Standards:

EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || UL 508 || JIS C 852 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

X

Product Or Component Type:

head for key selector switch

Reach Free Of Svhc:

Yes

Type Of Operator:

stay put

Cad Overall Width:

18 mm

Sale Per Indivisible Quantity:

1

Warranty:

18 months

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Range Of Product:

Harmony XB6

Bezel Material:

plastic

Cad Overall Height:

18 mm

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Circularity Profile:

ENVEOLI1710010EN

Rohs Exemption Information:

Yes

Operator Profile:

black key switch

Mounting Diameter:

16 mm

Cad Overall Depth:

55 mm

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Catalog:

View

Datasheet:

View
