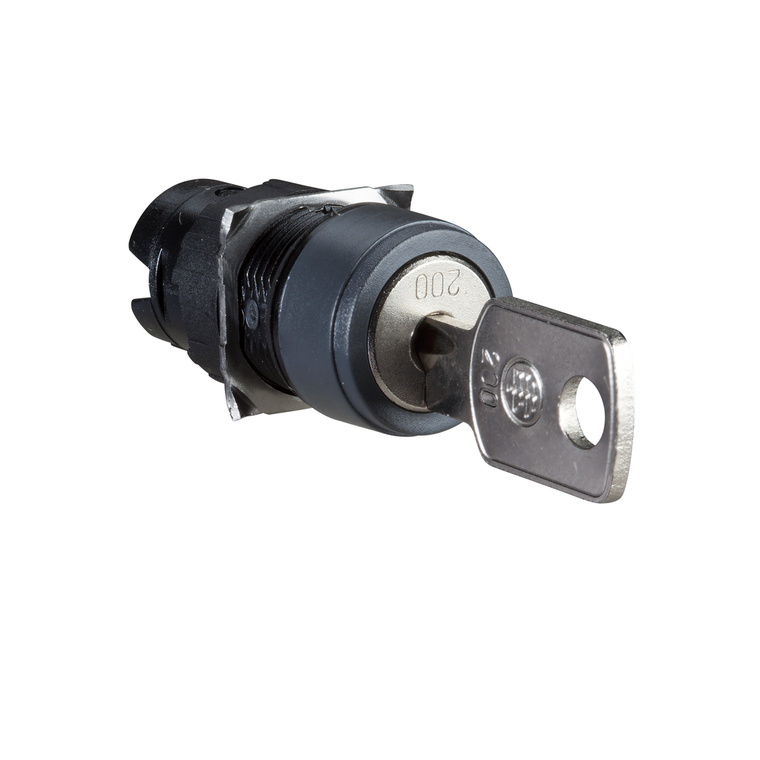

Schneider Electric ZB6AGD Selec To R Switch Head Lockable 3 Positi

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB6AGD Selec To R Switch Head Lockable 3 Positi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6AGD

UPC:

3389110784985

MPN:

Condition:

New

Range Of Product:

Harmony XB6

Standards:

IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C 852 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1

Operator Profile:

black key switch

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Short Name:

ZB6

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Shape Of Signaling Unit Head:

round

Rohs Exemption Information:

Yes

China Rohs Regulation:

X

Product Certifications:

GOST || CSA || UL || CCC

Sustainable Offer Status:

Green Premium product

Protective Treatment:

TC

Key Withdrawal Position:

left-hand

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Shock Protection Class:

class II IEC 61140

Circularity Profile:

ENVEOLI1710010EN

Cad Overall Width:

18 mm

Mounting Diameter:

16 mm

Warranty:

18 months

Reach Free Of Svhc:

Yes

Sale Per Indivisible Quantity:

1

Product Or Component Type:

head for key selector switch

Type Of Keylock:

key 200

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Depth:

55 mm

Environmental Disclosure:

ENVPEP1710010EN

Cad Overall Height:

18 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bezel Material:

plastic

Type Of Operator:

stay put

Ambient Air Temperature For Operation:

-25-70 °C

Toxic Heavy Metal Free:

Yes

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Operator Position Information:

3 positions

Mercury Free:

Yes

Ip Degree Of Protection:

IP65 IEC 60529
