Schneider Electric

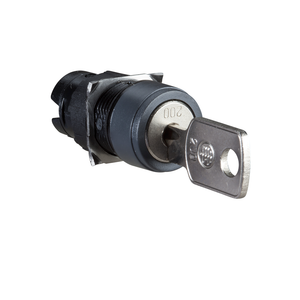

Schneider Electric ZB6AGH Selec To R Switch Head Lockable 3 Positi

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6AGH Selec To R Switch Head Lockable 3 Positi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6AGH

UPC:

3389110785029

MPN:

Condition:

New

Electrical Shock Protection Class:

class II IEC 61140

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Cad Overall Height:

18 mm

Operator Position Information:

3 positions

Standards:

IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C 852 || UL 508 || IEC 60947-5-5 || JIS C8201-1

China Rohs Regulation:

X

Ip Degree Of Protection:

IP65 IEC 60529

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TC

Operator Profile:

black key switch

Key Withdrawal Position:

in any position

Device Short Name:

ZB6

Product Or Component Type:

head for key selector switch

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1710010EN

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Type Of Operator:

stay put

Sale Per Indivisible Quantity:

1

Mounting Diameter:

16 mm

Range Of Product:

Harmony XB6

Cad Overall Depth:

55 mm

Shape Of Signaling Unit Head:

round

Ambient Air Temperature For Operation:

-25-70 °C

Warranty:

18 months

Mercury Free:

Yes

Type Of Keylock:

key 200

Cad Overall Width:

18 mm

Toxic Heavy Metal Free:

Yes

Sustainable Offer Status:

Green Premium product

Circularity Profile:

ENVEOLI1710010EN

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bezel Material:

plastic

Product Certifications:

UL || CCC || CSA || GOST

Reach Free Of Svhc:

Yes

Catalog:

View

Datasheet:

View
