Schneider Electric ZB6AS834 Pushbut To N Head And 30 Mm Turn To Rele
Schneider Electric
$49.60
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

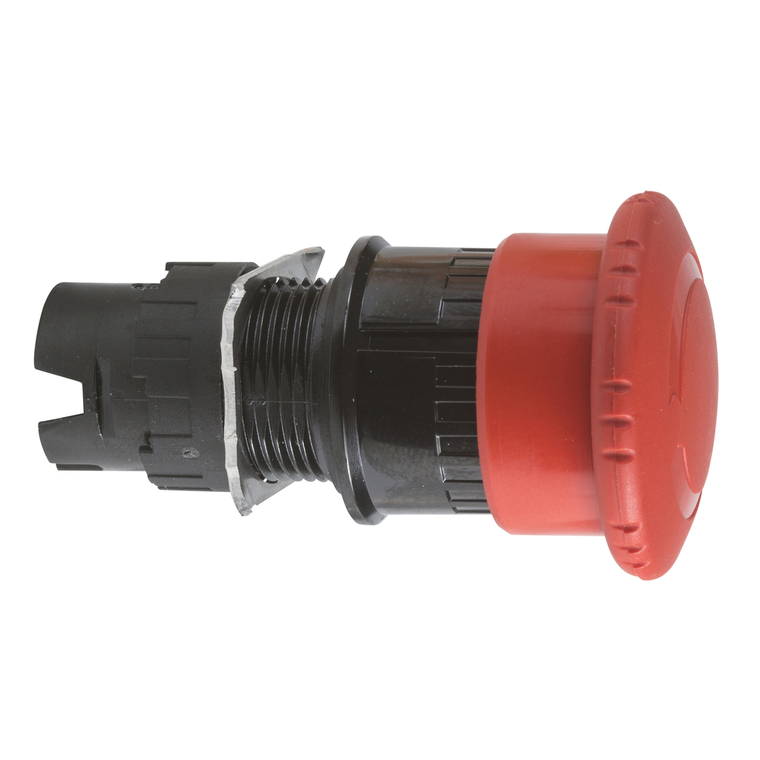

This Harmony ZB6AS834 is a red diameter 30mm Emergency stop push button head, trigger and latching turn release. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP65 IEC 60529
- Product Or Component Type:
- head for emergency stop push-button
- Bezel Material:
- plastic
- Cad Overall Width:
- 30 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile:
- red mushroom à 30 mm, unmarked
- Electrical Shock Protection Class:
- class II IEC 61140
- Standards:
- JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Device Short Name:
- ZB6
- Vibration Resistance:
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Height:
- 30 mm
- Product Certifications:
- CCC || CSA || GOST || UL
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc:
- Yes
- Net Weight:
- 0.035 kg
- Warranty:
- 18 months
- Reset:
- turn to release
- Mechanical Durability:
- 100000 cycles
- Circularity Profile:
- ENVEOLI1710010EN
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
- Mounting Diameter:
- 16 mm
- Cad Overall Depth:
- 50 mm
- Toxic Heavy Metal Free:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- trigger action and mechanical latching
- Ambient Air Temperature For Storage:
- -40-70 °C
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Operation:
- -25-70 °C
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TC
- Range Of Product:
- Harmony XB6
- Nema Degree Of Protection:
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
