Schneider Electric ZB6AS934 Pushbut To N Head And 30 Mm Key Release

Schneider Electric ZB6AS934 Pushbut To N Head And 30 Mm Key Release

Schneider Electric
SKU:
ZB6AS934
|
UPC:
3.38911E+12
$62.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

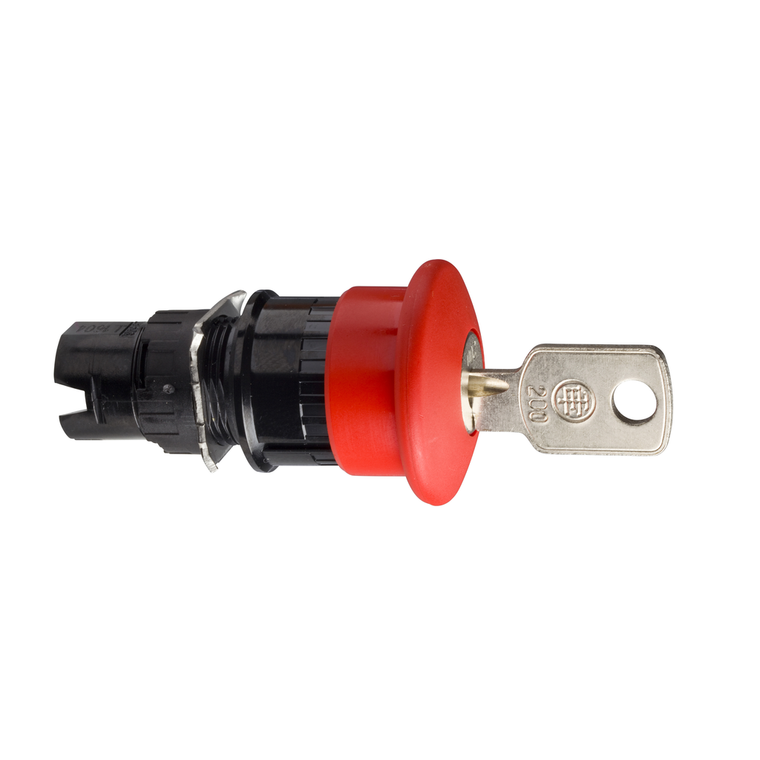

This Harmony ZB6AS934 is a red diameter 30mm Emergency stop push button head, trigger and latching key release. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Additional Information
Mechanical Durability:
100000 cycles
Type Of Keylock:
key 200
Circularity Profile:
ENVEOLI1710010EN
Net Weight:
0.05 kg
Operator Profile:
red mushroom Ø 30 mm, unmarked
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Width:
30 mm
Cad Overall Height:
30 mm
Nema Degree Of Protection:
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Electrical Shock Protection Class:
class II IEC 61140
Range Of Product:
Harmony XB6
Shape Of Signaling Unit Head:
round
Warranty:
18 months
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications:
UL || CSA || GOST || CCC
Product Or Component Type:
head for emergency stop push-button
Toxic Heavy Metal Free:
Yes
Reset:
key release
Rohs Exemption Information:
Yes
Cad Overall Depth:
70 mm
Bezel Material:
plastic
Protective Treatment:
TC
Standards:
JIS C8201-5-1 || UL 508 || EN/ISO 13850 || JIS C 852 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || EN/IEC 60204-1 || JIS C8201-1
Mercury Free:
Yes
Sale Per Indivisible Quantity:
1
Ip Degree Of Protection:
IP65 IEC 60529
Sustainable Offer Status:
Green Premium product
Vibration Resistance:
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Reach Free Of Svhc:
Yes
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Type Of Operator:
trigger action and mechanical latching
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Environmental Disclosure:
ENVPEP1710010EN
Device Short Name:
ZB6
China Rohs Regulation:
X
Ambient Air Temperature For Operation:
-25-70 °C
Mounting Diameter:
16 mm
