Schneider Electric ZB6CGH Square Selec To R Switch Head Lockable 3

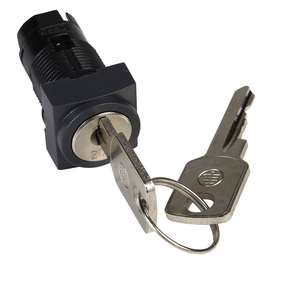

This Harmony ZB6CGH is a square selector switch head, 3-position stay put, key operated Ronis 200. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cad Overall Height:
- 18 mm
- Shape Of Signaling Unit Head:
- square
- Product Certifications:
- GOST || CSA || UL || CCC
- Circularity Profile:
- ENVEOLI1710010EN
- Ambient Air Temperature For Operation:
- -25-70 °C
- Device Short Name:
- ZB6
- Range Of Product:
- Harmony XB6
- Product Or Component Type:
- head for key selector switch
- Key Withdrawal Position:
- in any position
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Operator Position Information:
- 3 positions
- Operator Profile:
- black key switch
- Cad Overall Width:
- 18 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Type Of Keylock:
- key 200
- Type Of Operator:
- stay put
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Mounting Diameter:
- 16 mm
- Cad Overall Depth:
- 55 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Electrical Shock Protection Class:
- class II IEC 61140
- Ip Degree Of Protection:
- IP65 IEC 60529
- Vibration Resistance:
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TC
- Sale Per Indivisible Quantity:
- 1
- Warranty:
- 18 months
- Nema Degree Of Protection:
- NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- plastic
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || JIS C8201-1
- Mercury Free:
- Yes
