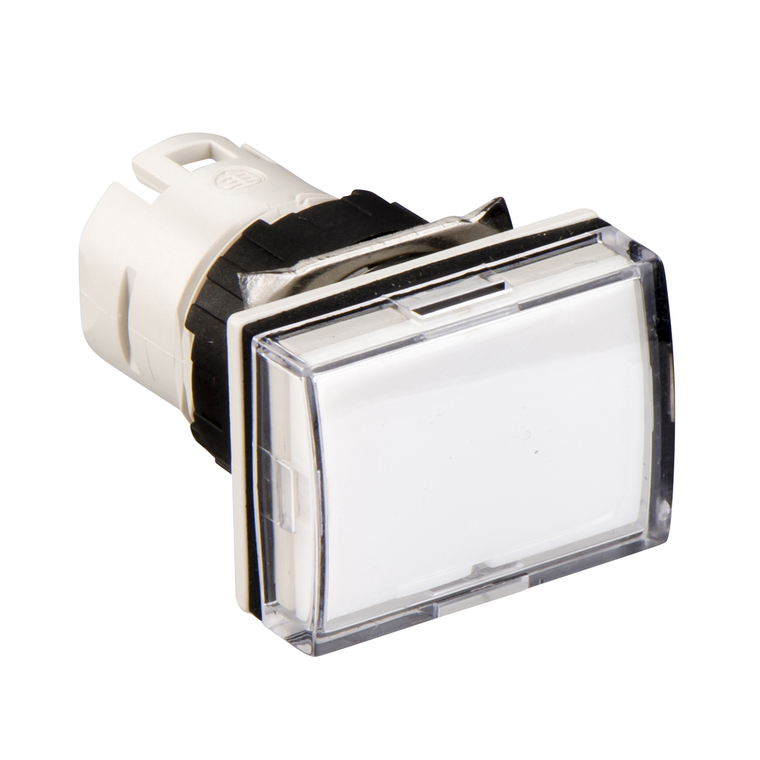

Schneider Electric ZB6DV1 Pilot Light Head Diam 16 Rectangular Whi

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB6DV1 Pilot Light Head Diam 16 Rectangular Whi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6DV1

UPC:

3.38911E+12

MPN:

Condition:

New

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Shape Of Signaling Unit Head:

rectangular

Warranty:

18 months

Cad Overall Height:

18 mm

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Disclosure:

ENVPEP1710010EN

Product Compatibility:

integral LED

Sale Per Indivisible Quantity:

1

Sustainable Offer Status:

Green Premium product

Bezel Material:

plastic

Electrical Shock Protection Class:

class II IEC 61140

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Ambient Air Temperature For Storage:

-40-70 °C

Cap/Operator Or Lens Colour:

white

Rohs Exemption Information:

Yes

Cad Overall Width:

24 mm

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Circularity Profile:

ENVEOLI1710010EN

Range Of Product:

Harmony XB6

Net Weight:

0.015 kg

Protective Treatment:

TC

Product Certifications:

GOST || CCC || UL || CSA

Mounting Diameter:

16 mm

Ip Degree Of Protection:

IP65 IEC 60529

Standards:

IEC 60947-5-5 || JIS C 852 || UL 508 || IEC 60947-1 || CSA C22.2 No 14 || JIS C 4520 || IEC 60947-5-1

Ambient Air Temperature For Operation:

-25-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

China Rohs Regulation:

X

Cad Overall Depth:

33 mm

Reach Free Of Svhc:

Yes

Device Short Name:

ZB6

Product Or Component Type:

head for pilot light
