Schneider Electric

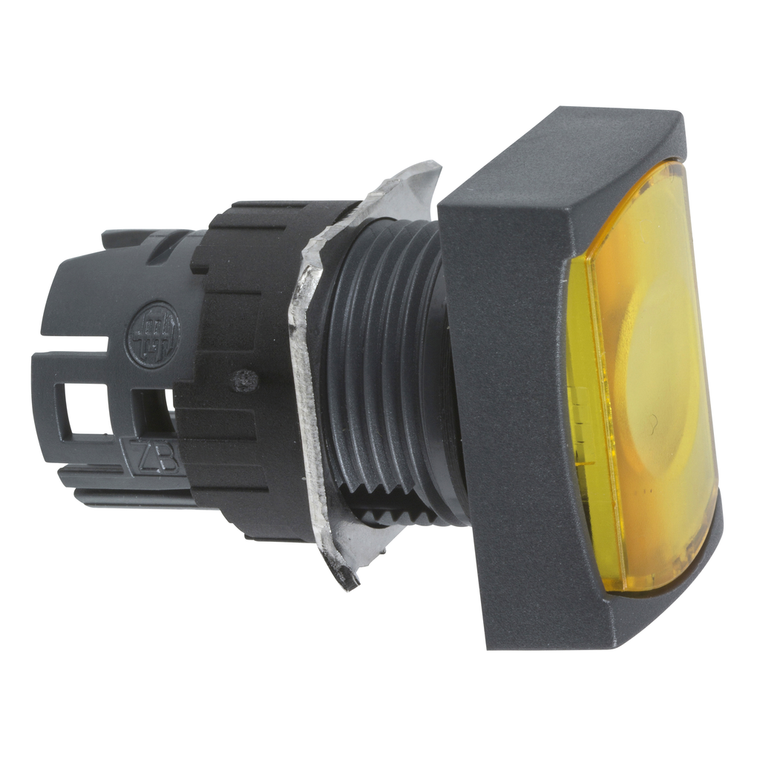

Schneider Electric ZB6DW5 Rectangular Illuminated Pushbut To N Hea

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6DW5 Rectangular Illuminated Pushbut To N Hea

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6DW5

UPC:

3389110776041

MPN:

Condition:

New

Product Certifications:

GOST || CSA || UL || CCC

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Protective Treatment:

TC

Toxic Heavy Metal Free:

Yes

Cad Overall Height:

18 mm

Ambient Air Temperature For Operation:

-25-70 °C

Type Of Operator:

spring return

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mounting Diameter:

16 mm

Circularity Profile:

ENVEOLI1710010EN

Product Compatibility:

integral LED

Shape Of Signaling Unit Head:

rectangular

Warranty:

18 months

Net Weight:

0.016 kg

Sustainable Offer Status:

Green Premium product

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94 || NEMA 13 CSA C22.2 No 94

Ip Degree Of Protection:

IP65 IEC 60529

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || JIS C 852 || UL 508 || JIS C8201-1

Cad Overall Width:

24 mm

Range Of Product:

Harmony XB6

Sale Per Indivisible Quantity:

1

Product Or Component Type:

head for illuminated push-button

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1710010EN

Cad Overall Depth:

33 mm

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Operator Profile:

yellow flush, unmarked

Reach Free Of Svhc:

Yes

Bezel Material:

plastic

Electrical Shock Protection Class:

class II IEC 61140

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Device Short Name:

ZB6

Catalog:

View

Datasheet:

View
