Schneider Electric

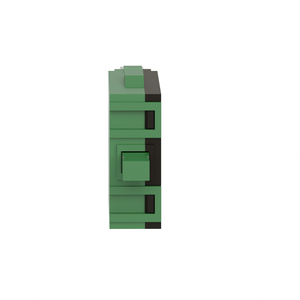

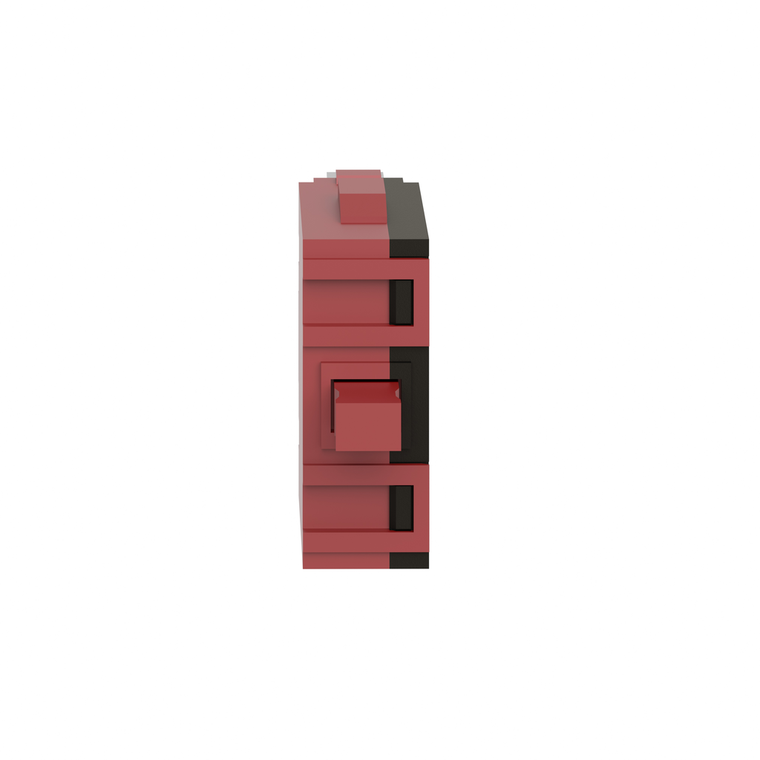

Schneider Electric ZB6E2B Control Button Contact Block Zb6 Diam 16

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6E2B Control Button Contact Block Zb6 Diam 16

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6E2B

UPC:

3389110775303

MPN:

Condition:

New

Connections - Terminals:

Faston connector

Circularity Profile:

ENVEOLI1710010EN

Environmental Disclosure:

ENVPEP1710010EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Contacts Type And Composition:

1 NC

Contact Operation:

slow-break

Range Of Product:

Harmony XB6

Operating Force:

2.5 N NC changing electrical state

Terminals Description Iso N°1:

(1-2)NC

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Free of Substances of Very High Concern above the threshold

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

China Rohs Regulation:

X

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection:

6 A cartridge fuse gG

Ambient Air Temperature For Storage:

-40-70 °C

Rohs Exemption Information:

Yes

Product Certifications:

GOST || CSA || UL || CCC

Mercury Free:

Yes

Reach Free Of Svhc:

Yes

Operating Travel:

1 mm NC changing electrical state) || 3.5 mm total travel)

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Contacts Material:

silver alloy (Ag/Ni)

Toxic Heavy Metal Free:

Yes

Net Weight:

0.004 kg

Mechanical Durability:

5000000 cycles

Protective Treatment:

TC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Contact Block Type:

single

Device Short Name:

ZB6

Standards:

UL 508 || JIS C 4520 || EN/IEC 60947-5-1 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Ambient Air Temperature For Operation:

-25-70 °C

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4

Sale Per Indivisible Quantity:

10

Product Or Component Type:

contact block

Ip Degree Of Protection:

IP20 IEC 60529

Catalog:

View

Datasheet:

View
