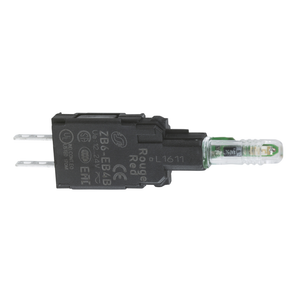

Schneider Electric ZB6EB3A Lamp.Hold. 12 24V Gr.Pcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB6EB3A Lamp.Hold. 12 24V Gr.Pcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6EB3A

UPC:

3389110784251

MPN:

Condition:

New

Bulb Base:

integral LED

Circularity Profile:

N/A

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

complete body for pilot lights

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Signalling Type:

steady

Light Block Supply:

direct

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Net Weight:

0.003 kg

Supply Voltage Limits:

6-30 V AC/DC

Ambient Air Temperature For Storage:

-40-70 °C

Range Of Product:

Harmony XB6

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Current Consumption:

15 mA

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

ZB6

Light Source:

LED

Product Certifications:

UL || GOST || CSA || CCC

Operating Position:

any position

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Connections - Terminals:

pins for printed circuit board 1 x 0.5 mm

Light Source Colour:

green

Electromagnetic Emission:

class B IEC 55011

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Sale Per Indivisible Quantity:

5

China Rohs Regulation:

X

Protective Treatment:

TC

Standards:

JIS C 852 || IEC 60947-5-5 || JIS C 4520 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1

Surge Withstand:

1 kV in contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

[Us] Rated Supply Voltage:

12...24 V AC/DC

Ambient Air Temperature For Operation:

-25-70 °C

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Electrical Shock Protection Class:

class II IEC 61140
