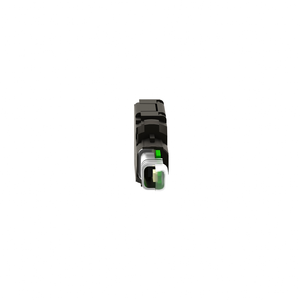

Schneider Electric ZB6EG4B Body For Pilot Light Zb6 Red Integral Le

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB6EG4B Body For Pilot Light Zb6 Red Integral Le

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6EG4B

UPC:

3.38911E+12

MPN:

Condition:

New

Operating Position:

any position

Signalling Type:

steady

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Warranty:

18 months

China Rohs Regulation:

X

Bulb Base:

integral LED

Sustainable Offer Status:

Green Premium product

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Electrical Shock Protection Class:

class II IEC 61140

Cad Overall Height:

14 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Standards:

IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C 852 || IEC 60947-1 || UL 508

Light Source:

LED

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Terminals Description Iso N°1:

(X1-X2)PL

Sale Per Indivisible Quantity:

5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Product Or Component Type:

complete body for pilot lights

Range Of Product:

Harmony XB6

Light Source Colour:

red

Rohs Exemption Information:

Yes

Ambient Air Temperature For Storage:

-40-70 °C

Light Block Supply:

direct

Supply Voltage Limits:

40-132 V AC

Device Short Name:

ZB6

Surge Withstand:

1 kV in contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

CCC || GOST || UL || CSA

Net Weight:

0.003 kg

Ambient Air Temperature For Operation:

-25-70 °C

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Protective Treatment:

TC

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Cad Overall Depth:

58 mm

[Us] Rated Supply Voltage:

48...120 V AC

Circularity Profile:

ENVEOLI1710010EN

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Environmental Disclosure:

ENVPEP1710010EN

Electromagnetic Emission:

class B IEC 55011
