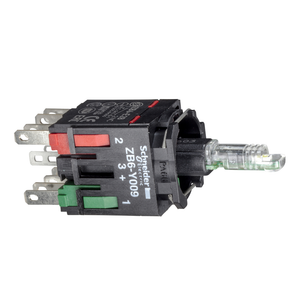

Schneider Electric ZB6ZB11B Body For Illuminated Control But To N Di

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6ZB11B Body For Illuminated Control But To N Di

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6ZB11B

UPC:

3389110784398

MPN:

Condition:

New

Light Source Colour:

white

Bulb Base:

integral LED

Electromagnetic Emission:

class B IEC 55011

Contact Operation:

slow-break

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Product Certifications:

CSA || CCC || UL || GOST

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Short Name:

ZB6

Operating Travel:

2 mm NO changing electrical state) || 4.3 mm total travel)

Current Consumption:

15 mA

Mercury Free:

Yes

Terminals Description Iso N°1:

(13-14)NO

Ambient Air Temperature For Operation:

-25-70 °C

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300

Operating Force:

1.6 N NO changing electrical state

Electrical Shock Protection Class:

class II IEC 61140

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Sustainable Offer Status:

Green Premium product

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

Cad Overall Height:

18 mm

Fixing Collar Material:

plastic

Range Of Product:

Harmony XB6

Short-Circuit Protection:

6 A cartridge fuse gG EN/IEC 60947-5-1

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Product Or Component Type:

complete body for illuminated push-button

Connections - Terminals:

Faston connector 2.8 x 0.5 mm

Net Weight:

0.006 kg

[Us] Rated Supply Voltage:

12...24 V AC/DC

Environmental Disclosure:

ENVPEP1710010EN

Contacts Type And Composition:

1 NO

Ambient Air Temperature For Storage:

-40-70 °C

Cad Overall Depth:

51 mm

China Rohs Regulation:

X

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-5 || UL 508 || JIS C 852

Protective Treatment:

TC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sale Per Indivisible Quantity:

1

Cad Overall Width:

24 mm

Contacts Material:

silver alloy (Ag/Ni)

Signalling Type:

steady

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Circularity Profile:

ENVEOLI1710010EN

Rohs Exemption Information:

Yes

Warranty:

18 months

Supply Voltage Limits:

6-30 V AC/DC

Contacts Usage:

standard

Light Source:

LED
