Schneider Electric

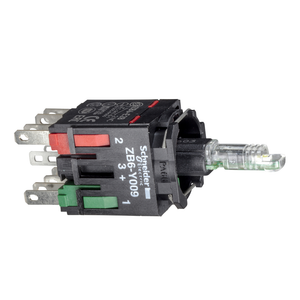

Schneider Electric ZB6ZB42B Body For Illuminated Control But To N Di

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ZB6ZB42B Body For Illuminated Control But To N Di

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB6ZB42B

UPC:

3.38911E+12

MPN:

Condition:

New

Light Source:

LED

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1710010EN

Electromagnetic Emission:

class B IEC 55011

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Circularity Profile:

ENVEOLI1710010EN

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300

Net Weight:

0.006 kg

Fixing Collar Material:

plastic

Rohs Exemption Information:

Yes

Cad Overall Depth:

51 mm

Light Source Colour:

red

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Resistance To Fast Transients:

2 kV IEC 61000-4-4

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sale Per Indivisible Quantity:

1

Operating Force:

2.5 N NC changing electrical state

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C 852 || JIS C 4520 || EN/IEC 60947-5-1 || UL 508

Contacts Usage:

standard

Contact Operation:

slow-break

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Bulb Base:

integral LED

Supply Voltage Limits:

6-30 V AC/DC

Product Certifications:

CSA || GOST || CCC || UL

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

China Rohs Regulation:

X

Device Short Name:

ZB6

[Us] Rated Supply Voltage:

12...24 V AC/DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Short-Circuit Protection:

6 A cartridge fuse gG EN/IEC 60947-5-1

Cad Overall Height:

18 mm

Mercury Free:

Yes

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6

Product Or Component Type:

complete body for illuminated push-button

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Range Of Product:

Harmony XB6

Sustainable Offer Status:

Green Premium product

Current Consumption:

15 mA

Contacts Material:

silver alloy (Ag/Ni)

Operating Travel:

1 mm NC changing electrical state) || 4.3 mm total travel)

Ambient Air Temperature For Operation:

-25-70 °C

Signalling Type:

steady

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4

Protective Treatment:

TC

Warranty:

18 months

Ambient Air Temperature For Storage:

-40-70 °C

Connections - Terminals:

Faston connector 2.8 x 0.5 mm

Cad Overall Width:

24 mm

Terminals Description Iso N°1:

(11-12)NC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Electrical Shock Protection Class:

class II IEC 61140

Contacts Type And Composition:

1 NC
